2.20MM(.087")
32206

32202TOP

  • Product Code:

    32202TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.087"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240827/20240827082829_26942.jpg

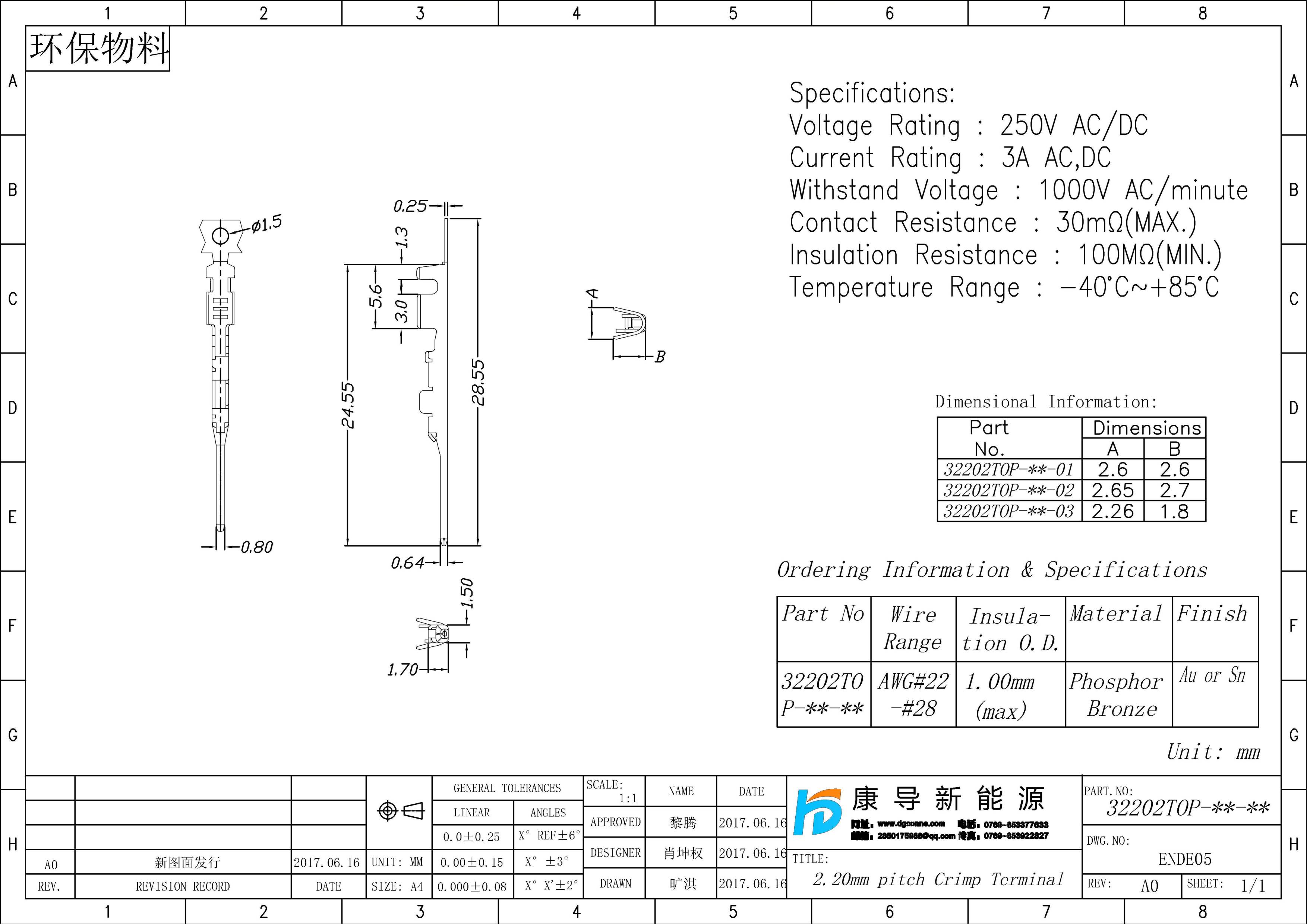

Spec:2.2mm PITCH TERMINAL
Wrie Range:AWG#22~#28
Insulation O.D.:1.0mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:30mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+85℃
