2.20MM(.087")
32204

42204W00

  • Product Code:

    42204W00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.087"180°PITCH WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

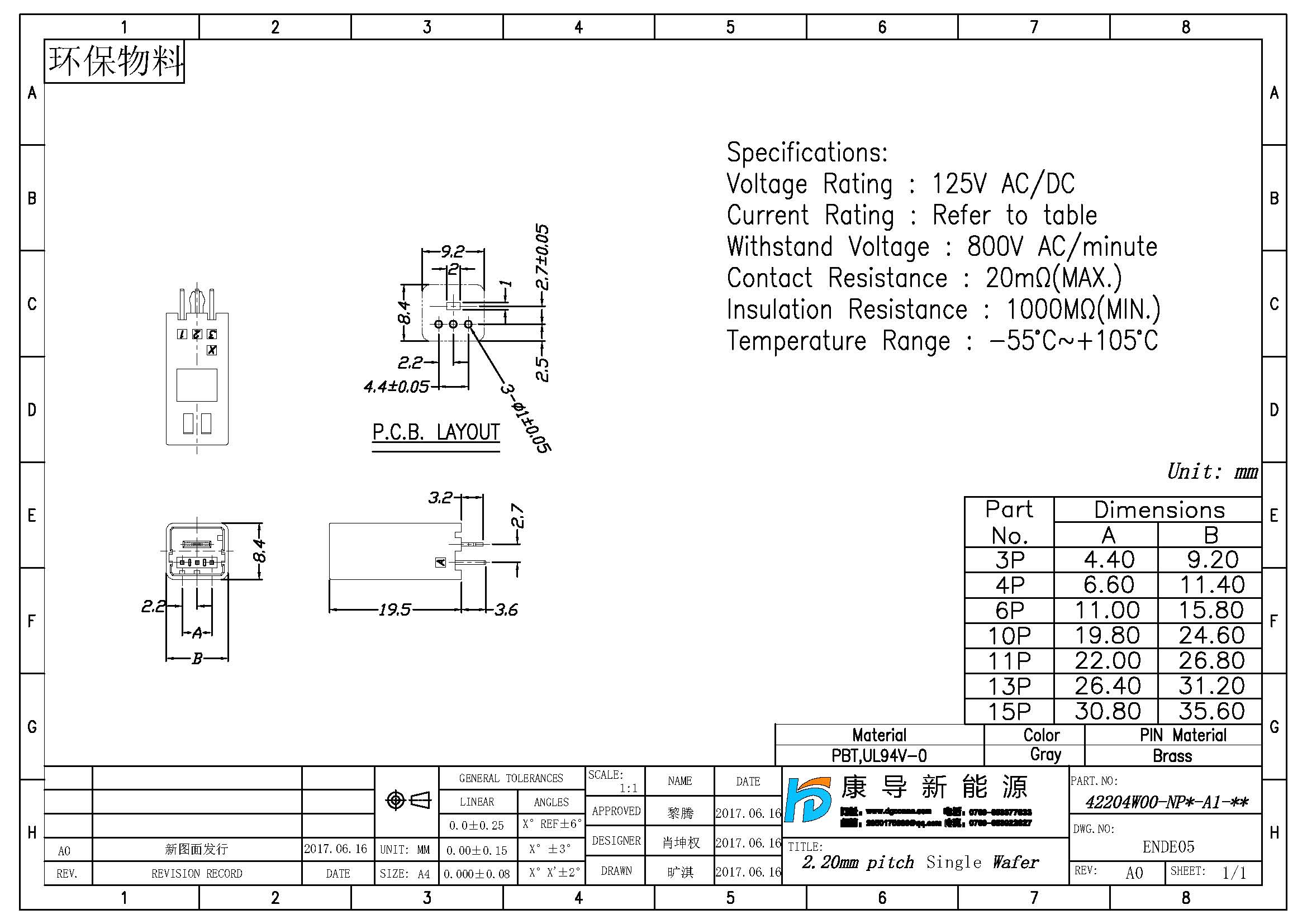

/js/htmledit/kindeditor/attached/20240827/20240827134324_77443.jpg

Spec:2.2mm PITCH 180° PITCH WAFER DIP
Poles:1*3~1*15
Rated Voltage:125V AC DC
Rated Current:Refer to table
Withstand Voltage:800V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-55℃~+105℃
