Product Code:
42204W90Order(MOQ):
3000Product Specifications:
0.087"90° Dual WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240827/20240827135145_56661.jpg

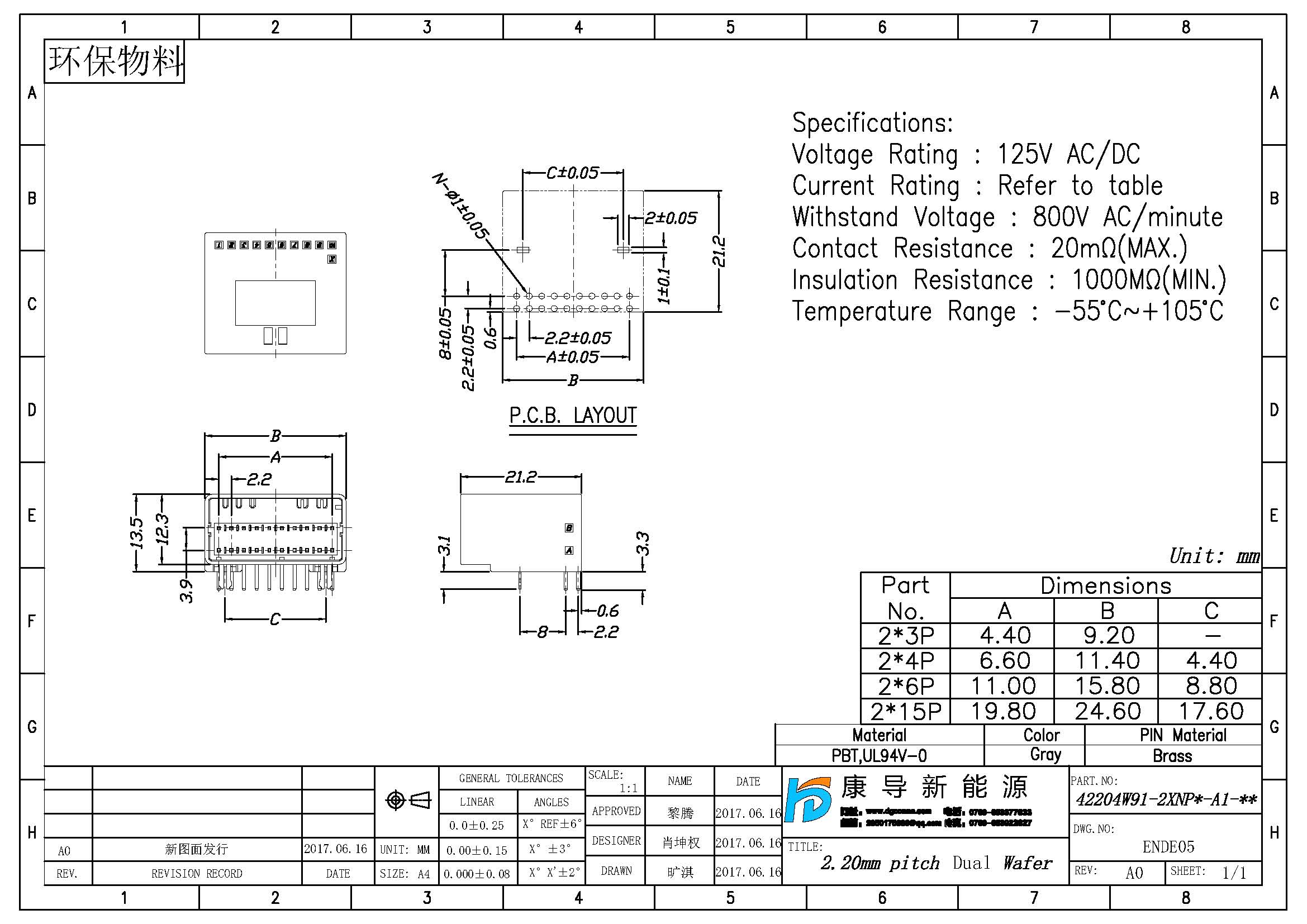

Spec:2.2mm PITCH 90° Dual WAFER DIP TYPE
Poles:2*3~2*15
Rated Voltage:125V AC DC
Rated Current:Refer to table
Withstand Voltage:800V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-55℃~+105℃
