Product Code:
42202W90Order(MOQ):
3000Product Specifications:
0.087"90°Single WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240827/20240827140830_36387.jpg

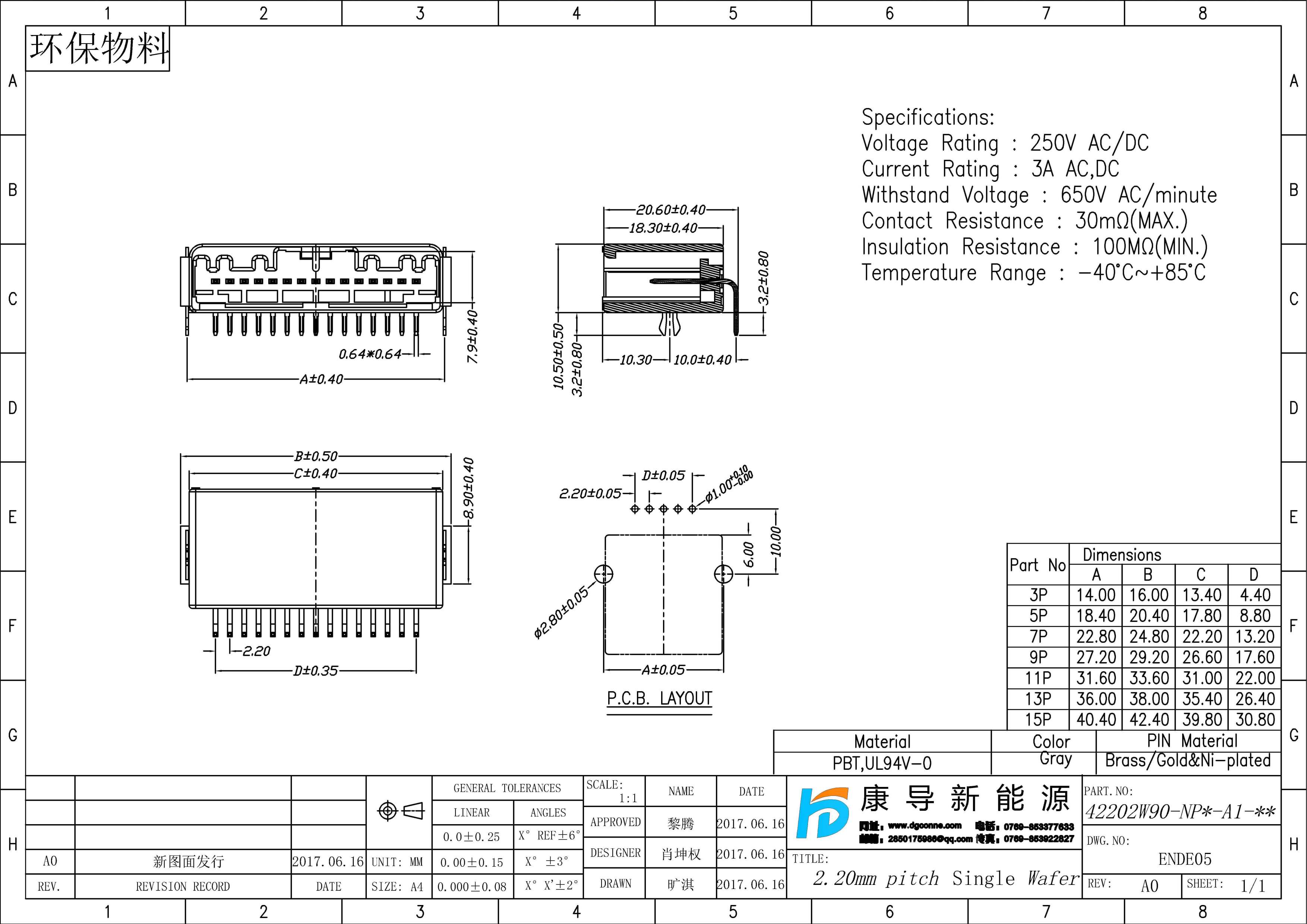

Spec:2.2mm PITCH 90° Single WAFER DIP TYPE
Poles:1*3~1*15
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Withstand Voltage:650V AC/minute
Contact resistance:30mΩ Max
Insulation resistance:100MΩ Min
Temperature Range:-40℃~+85℃
