2.20MM(.087")
42202

42202W00

  • Product Code:

    42202W00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.087"180° Single WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

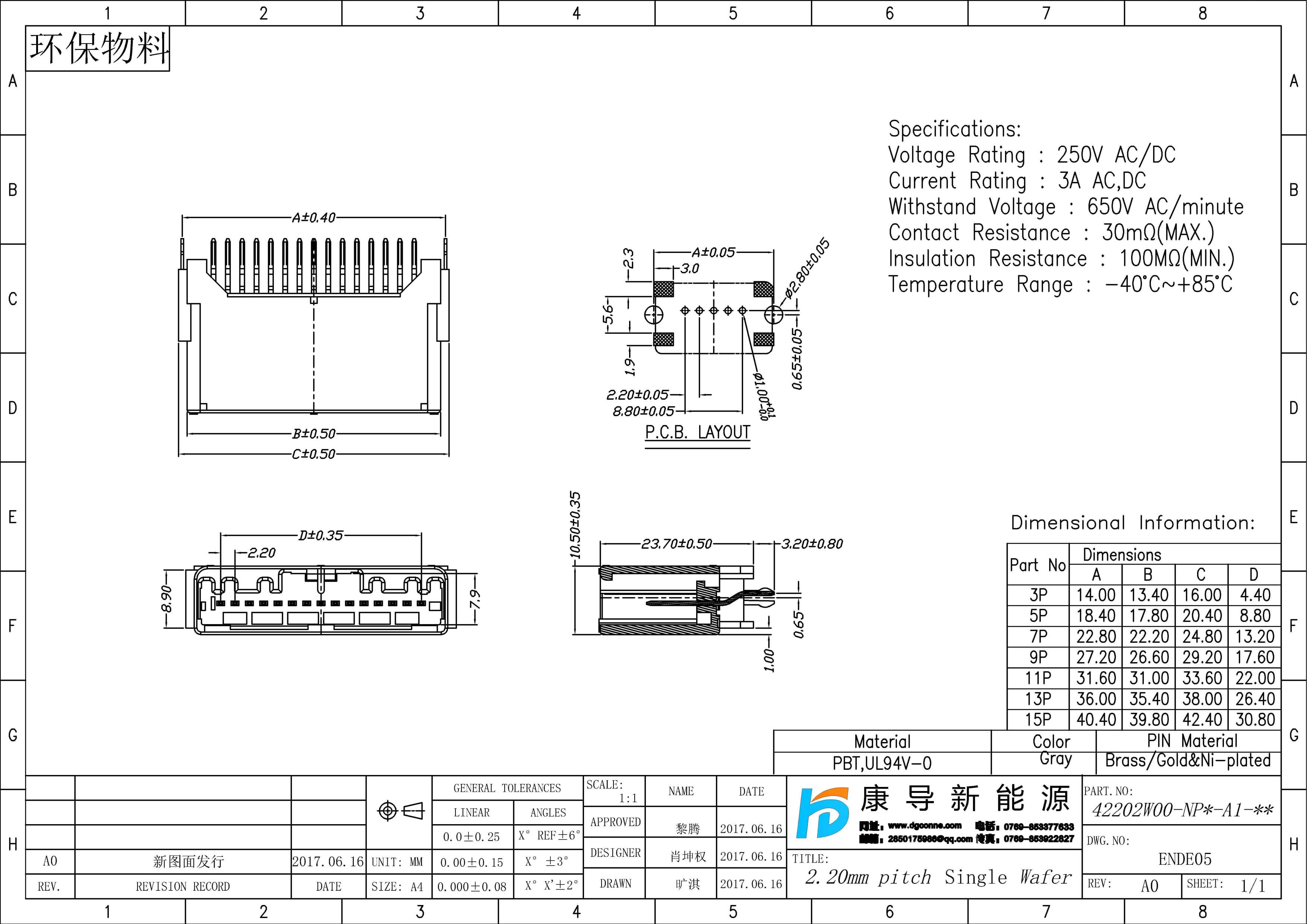

/js/htmledit/kindeditor/attached/20240827/20240827140630_78459.jpg

 Spec:2.2mm PITCH 180° Single WAFER DIP TYPE
Poles:2*5~2*20
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Withstand Voltage:650V AC/minute
Contact resistance:30mΩ Max
Insulation resistance:100MΩ Min
Temperature Range:-40℃~+85℃
