Product Code:
42013TOPOrder(MOQ):
3000Product Specifications:
0.079 amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240820/20240820115042_31653.jpg

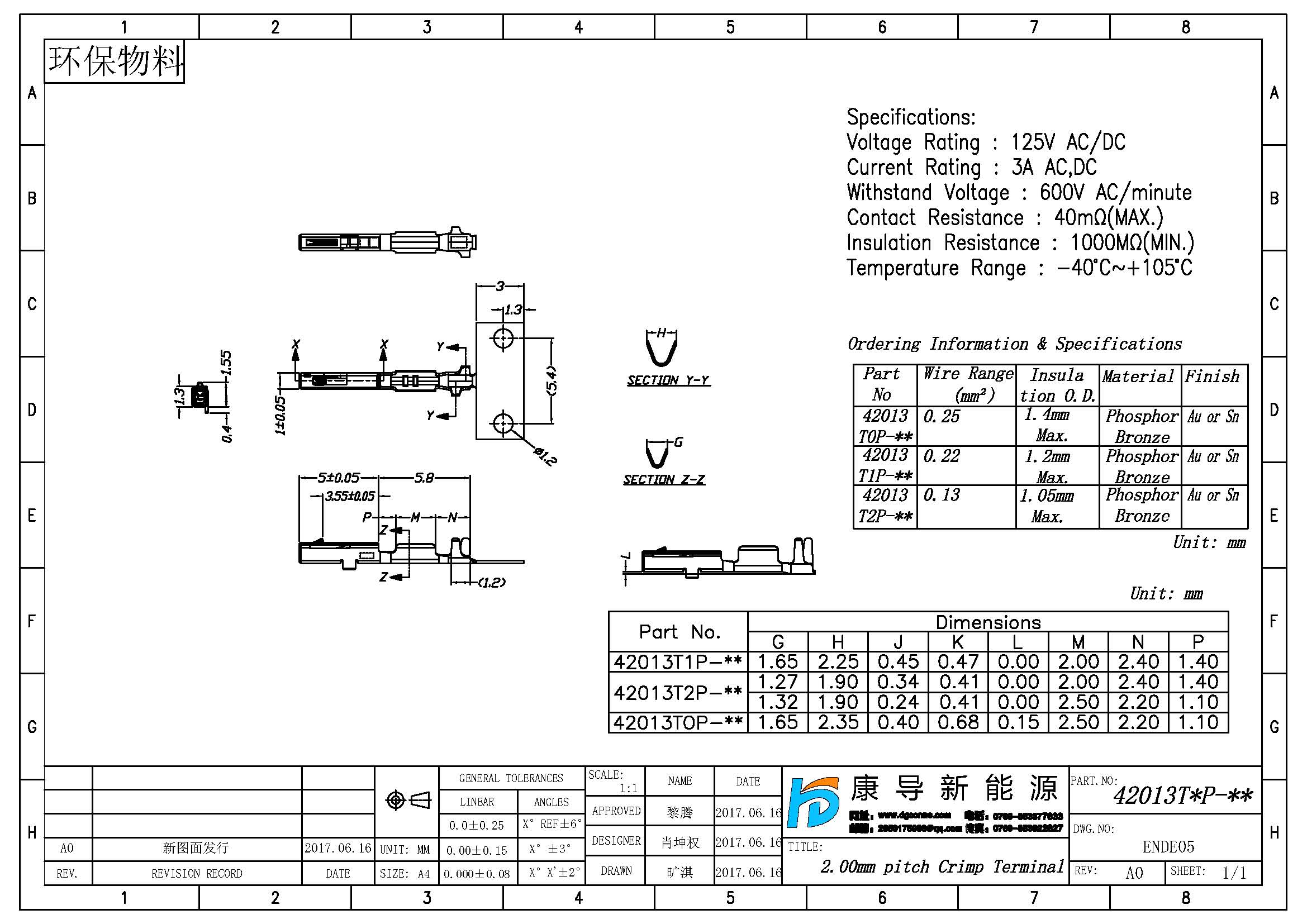

Spec:2.0mm PITCH TERMINAL
Wrie Range:0.25/0.22/0.13
Insulation O.D.:1.4mm 1.2mm 1.05mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:125V AC DC
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:600V AC/minute
Temperature Range:-40℃~+105℃
