2.00MM(.079")
42013-1

42013T0P

  • Product Code:

    42013T0P
  • Order(MOQ):

    3000
  • Product Specifications:

    0.079 amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240820/20240820113919_77900.jpg

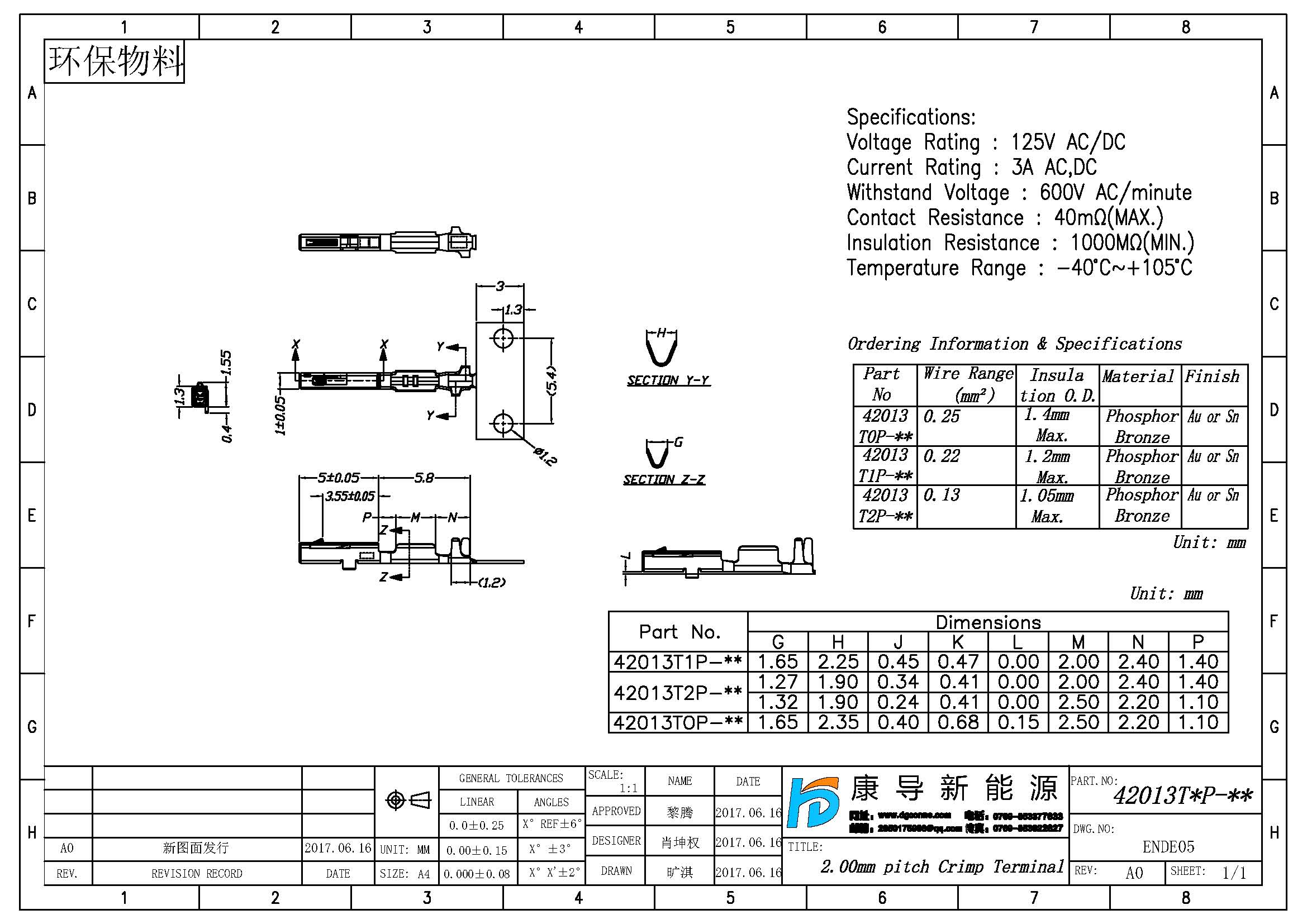

Spec:2.0mm PITCH TERMINAL
Wrie Range:0.25/0.22/0.13
Insulation O.D.:1.4mm 1.2mm 1.05mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:125V AC DC
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:600V AC/minute
Temperature Range:-40℃~+105℃

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Subject : 42013-1
