2.00MM(.079")
42001

42001TOP

  • Product Code:

    42001TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.079 amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

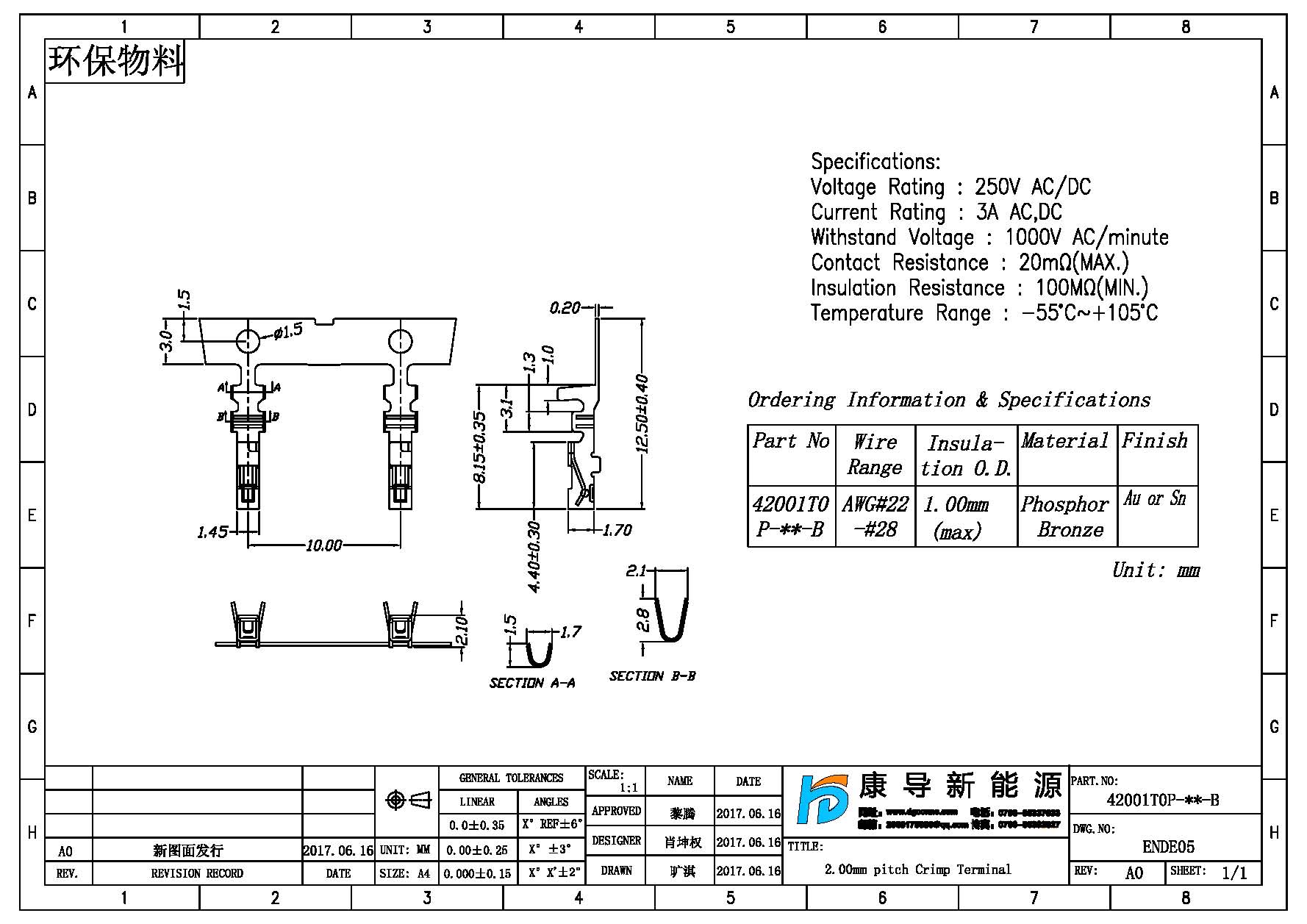

/js/htmledit/kindeditor/attached/20240822/20240822133938_53197.jpg

Spec:2.0mm PITCH CRIMP TERMINAL
Wrie Range:AWG#22~#28
Insulation O.D.:1.00mm Max
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
