2.00MM(.079")
42001

42001W00

    PIN:2*5-2*20P H:12.45MM

  • Product Code:

    42001W00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.079 180°Dual WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

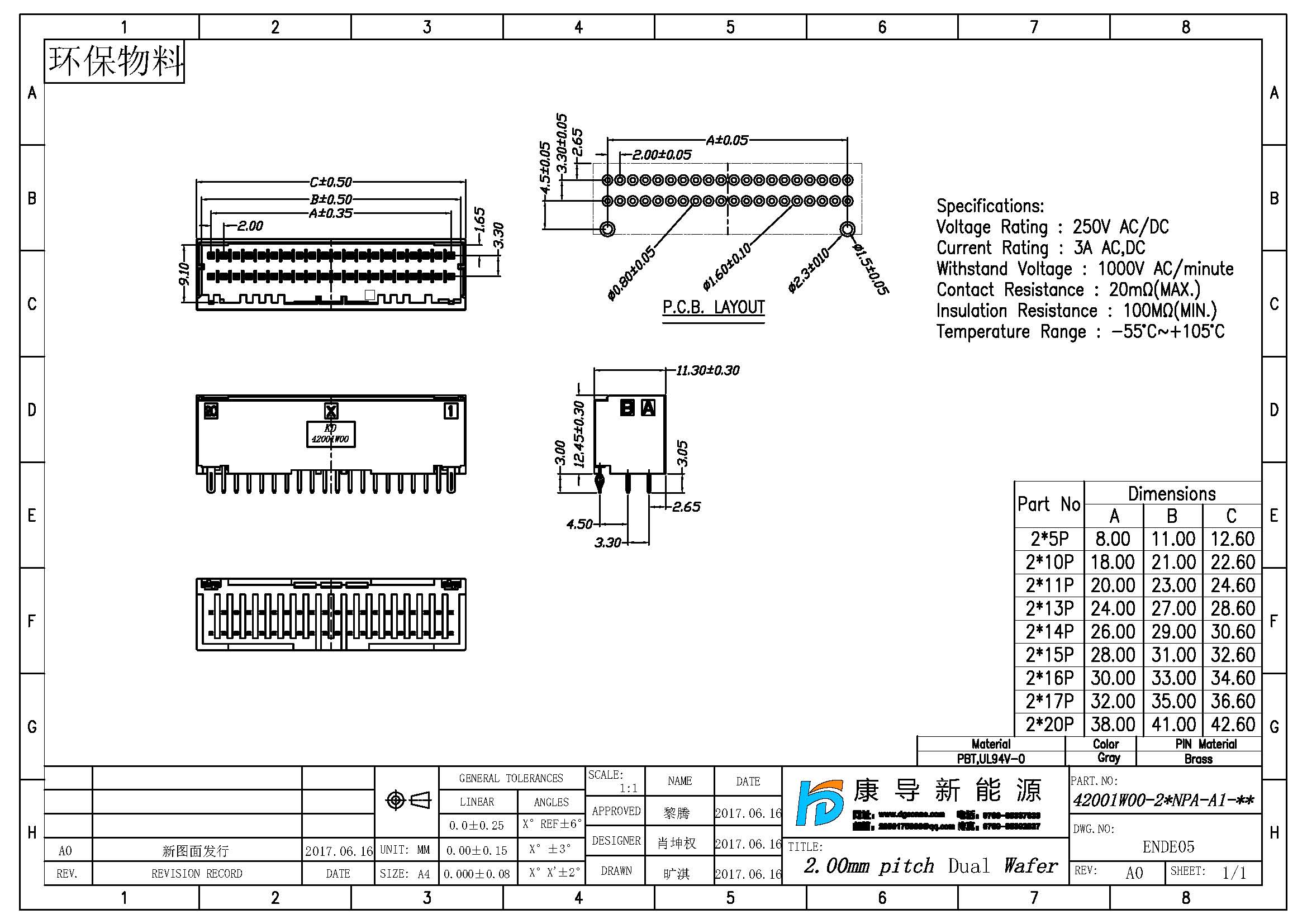

/js/htmledit/kindeditor/attached/20240822/20240822102756_58843.jpg

Spec:2.0mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*5~2*20
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Withstand Voltage:1500V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-55℃~+105℃
