Product Code:
32204TOPOrder(MOQ):
3000Product Specifications:
0.087"amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240827/20240827134911_17645.jpg

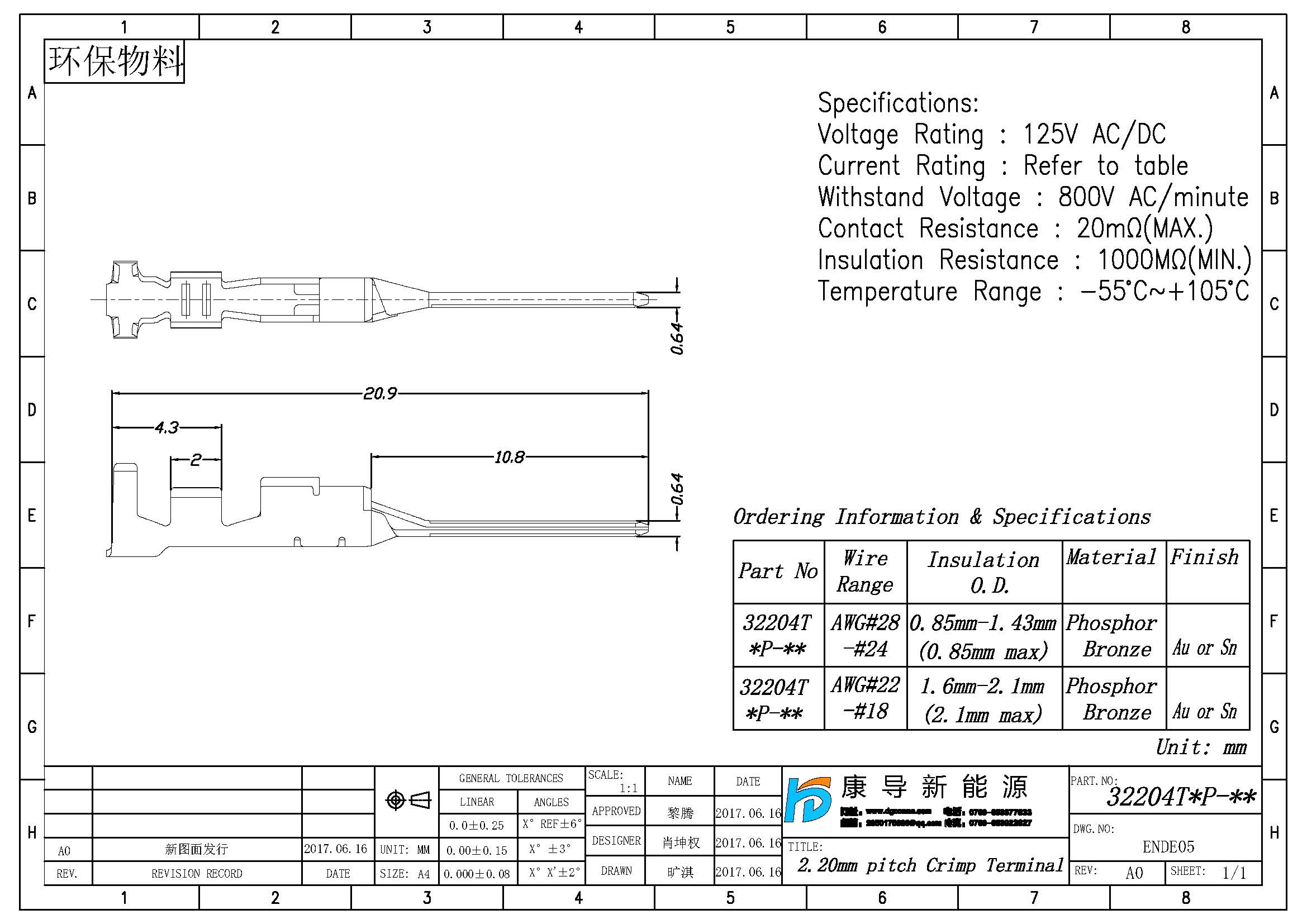

Spec:2.2mm PITCH TERMINAL
Wrie Range:AWG#24~#28 AWG#18~#22
Insulation O.D.:0.85mm-1.43mm 1.6mm-2.1mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:Refer to table
Rated Voltage:125V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:800V AC/minute
Temperature Range:-55℃~+105℃
