4.20MM(.165")
24201A

24201T

  • Product Code:

    24201T
  • Order(MOQ):

    3000
  • Product Specifications:

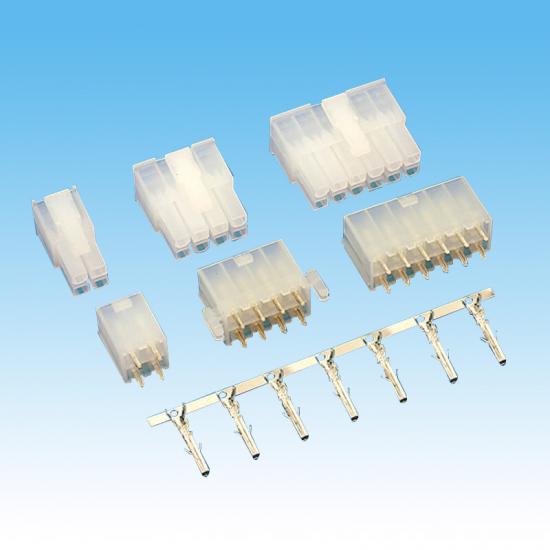

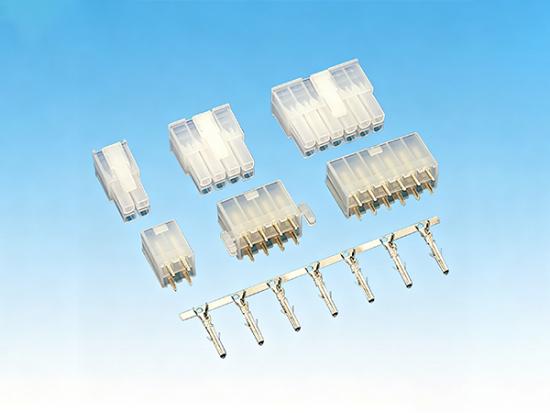

    0.165"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240904/20240904175432_11977.jpg

Spec:4.20mm PITCH TERMINAL
Wrie Range:AWG #22~#28
Insulation O.D.:
Material:Phosphor bronze
Plating:Sn
Rated Current:9.0A AC DC
Rated Voltage:300V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
