2.54MM(.100")
22543A

22543T

  • Product Code:

    22543T
  • Order(MOQ):

    3000
  • Product Specifications:

    0.100"Female terminal
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

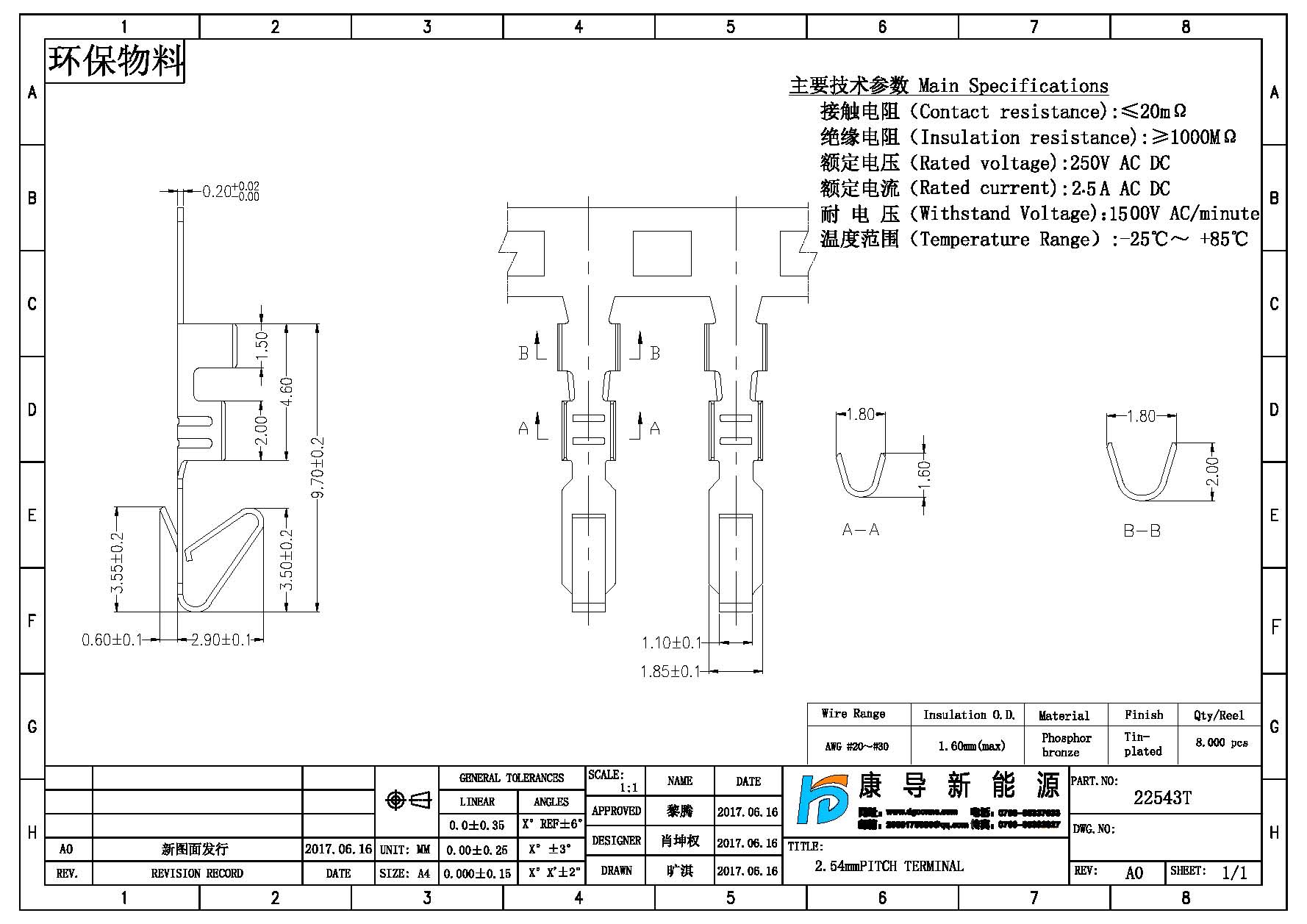

/js/htmledit/kindeditor/attached/20240906/20240906144137_11625.jpg

Spec:2.54mm PITCH TERMINAL
Wrie Range:AWG #20~#30
Insulation O.D.:1.60mm MAX
Material:Phosphor bronze
Plating:Sn
Rated Current:2.5A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
