2.54MM(.100")
22543A

22543Y

  • Product Code:

    22543Y
  • Order(MOQ):

    3000
  • Product Specifications:

    0.100"Wire end male shell
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

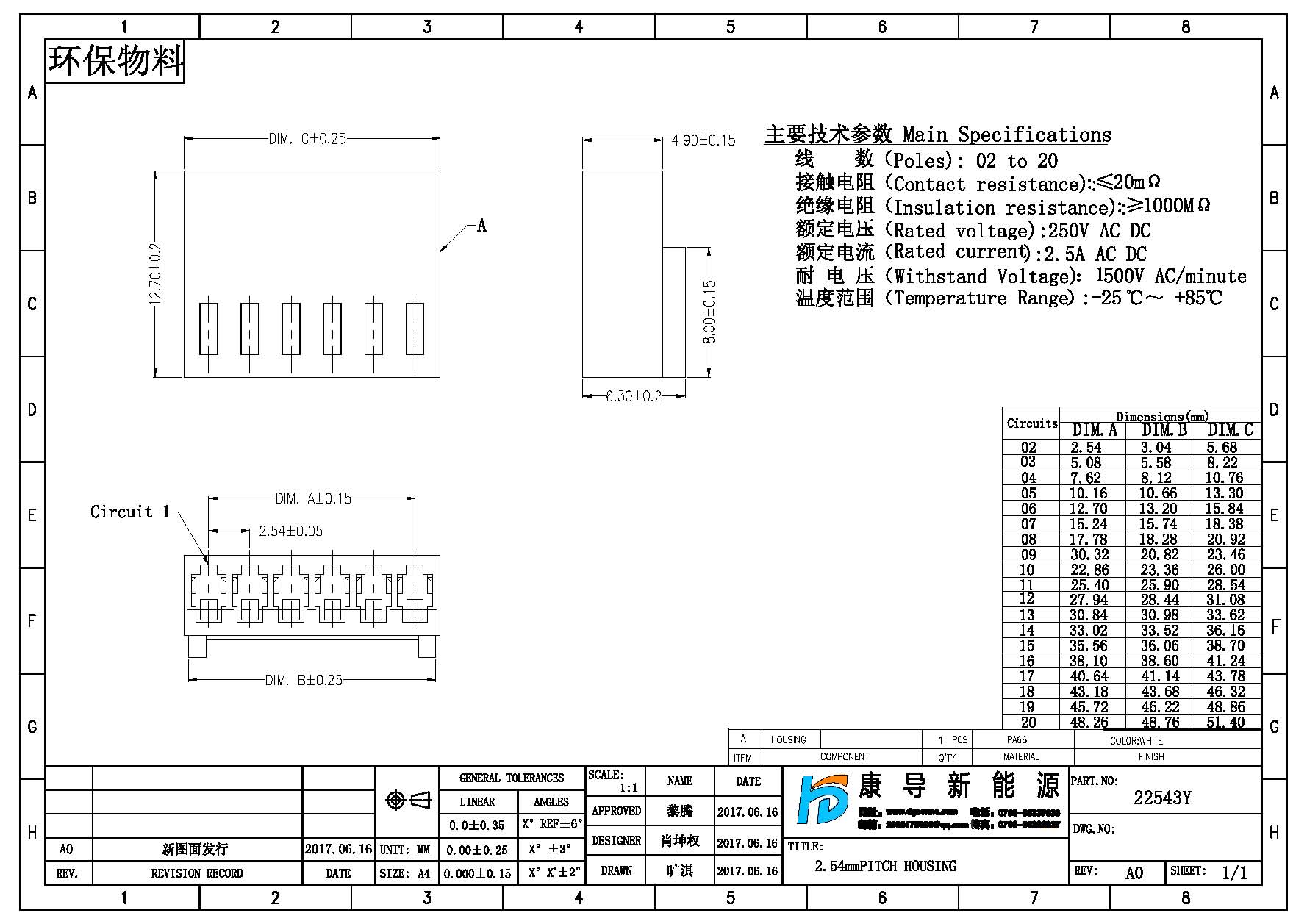

/js/htmledit/kindeditor/attached/20240906/20240906144040_19085.jpg

Spec:2.54mm PITCH HOUSING
Poles:2-20
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:2.5A AC DC
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
