Product Code:
22505AWOrder(MOQ):
3000Product Specifications:
0.098"Single row of bent needlesProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240909/20240909083920_69430.jpg

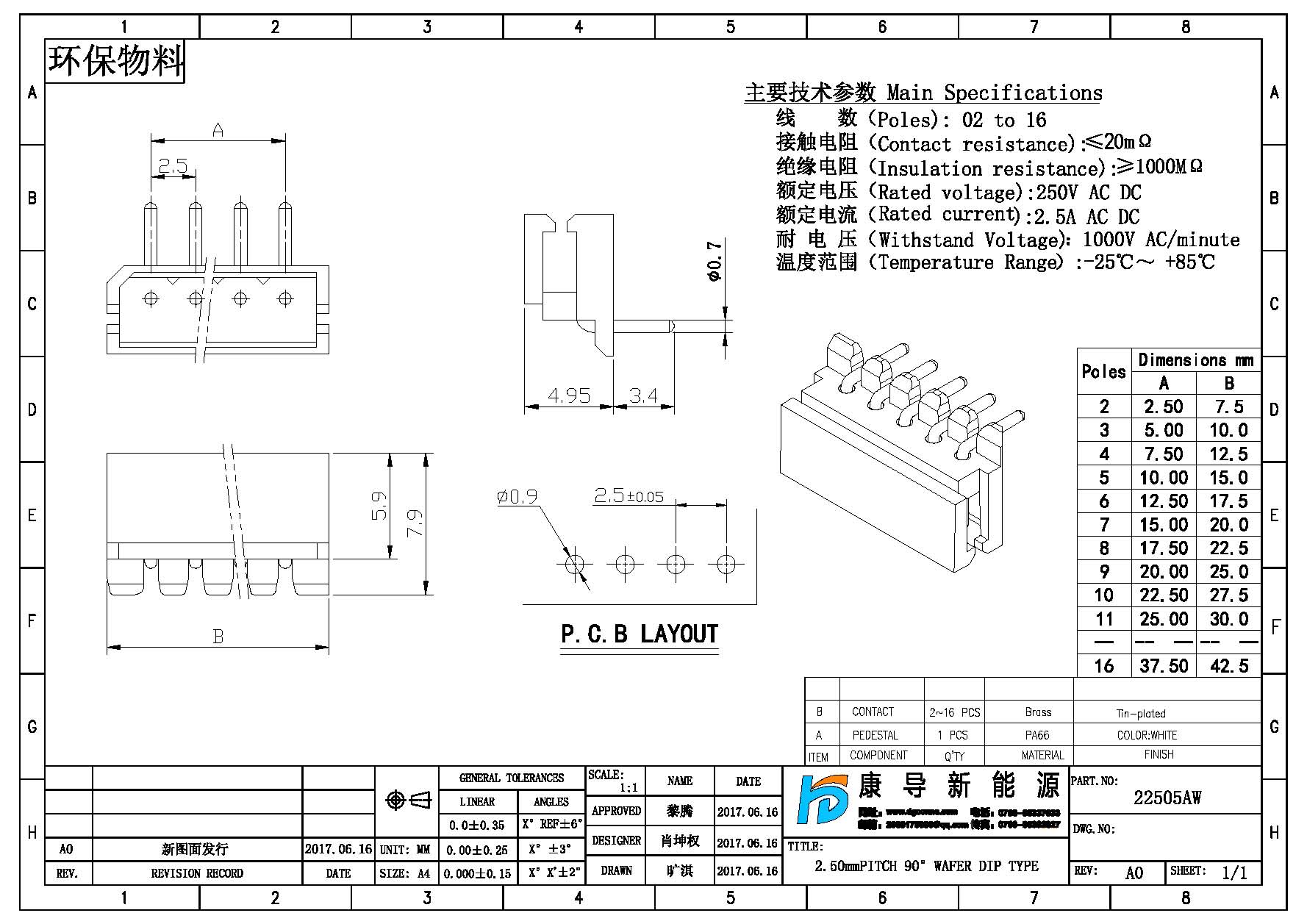

Spec:2.50mm PITCH 90° WAFER DIP TYPE
Poles:2-16
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:2.5A AC DC
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
