2.50MM(.098")
22507A

22507Y

  • Product Code:

    22507Y
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"Double emptying male housing
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240909/20240909080349_61620.jpg

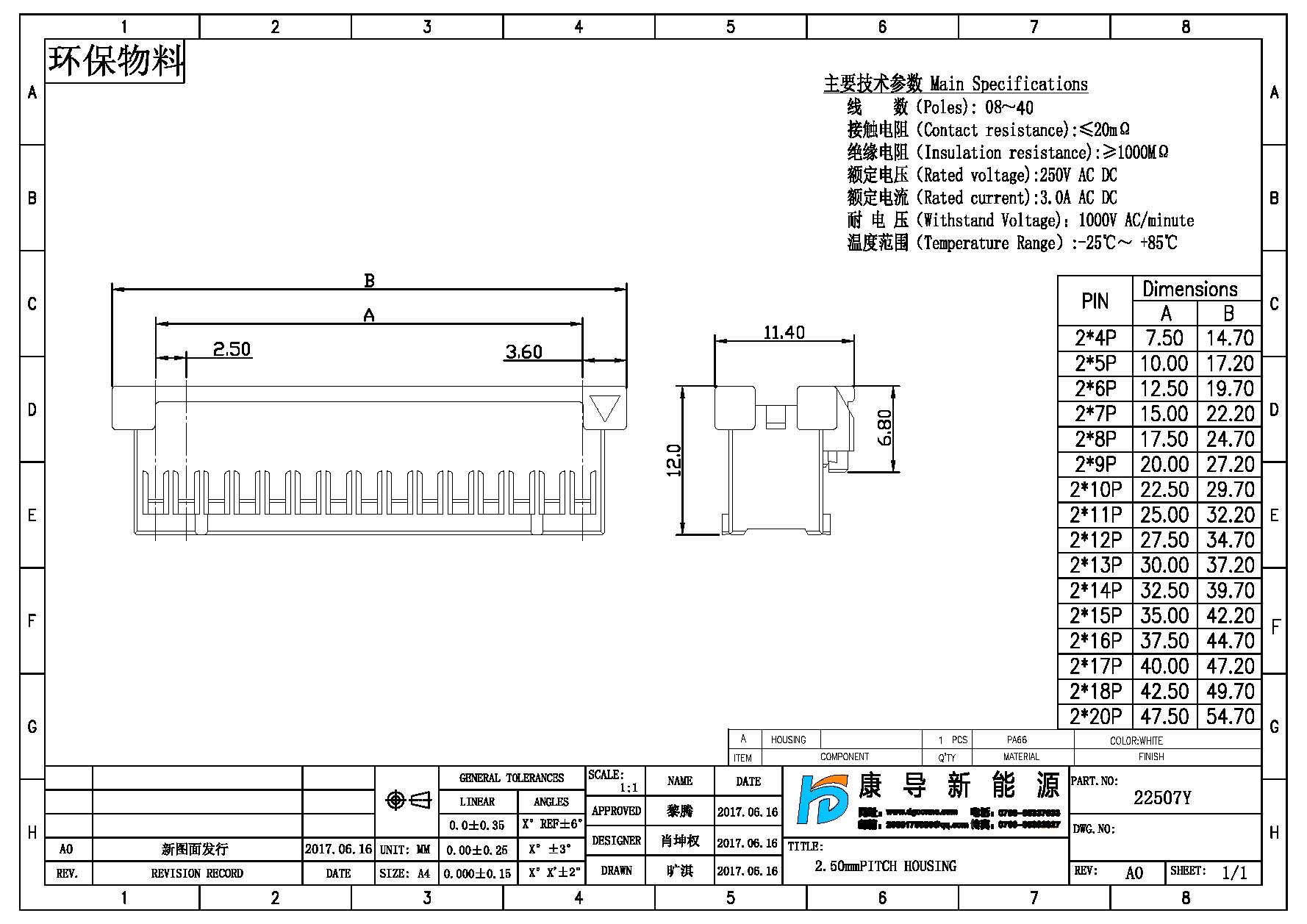

Spec:2.50mm PITCH HOUSING
Poles:08-40
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:3.0A AC DC
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
