2.50MM(.098")
22501A

22501T

  • Product Code:

    22501T
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"Female terminal
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

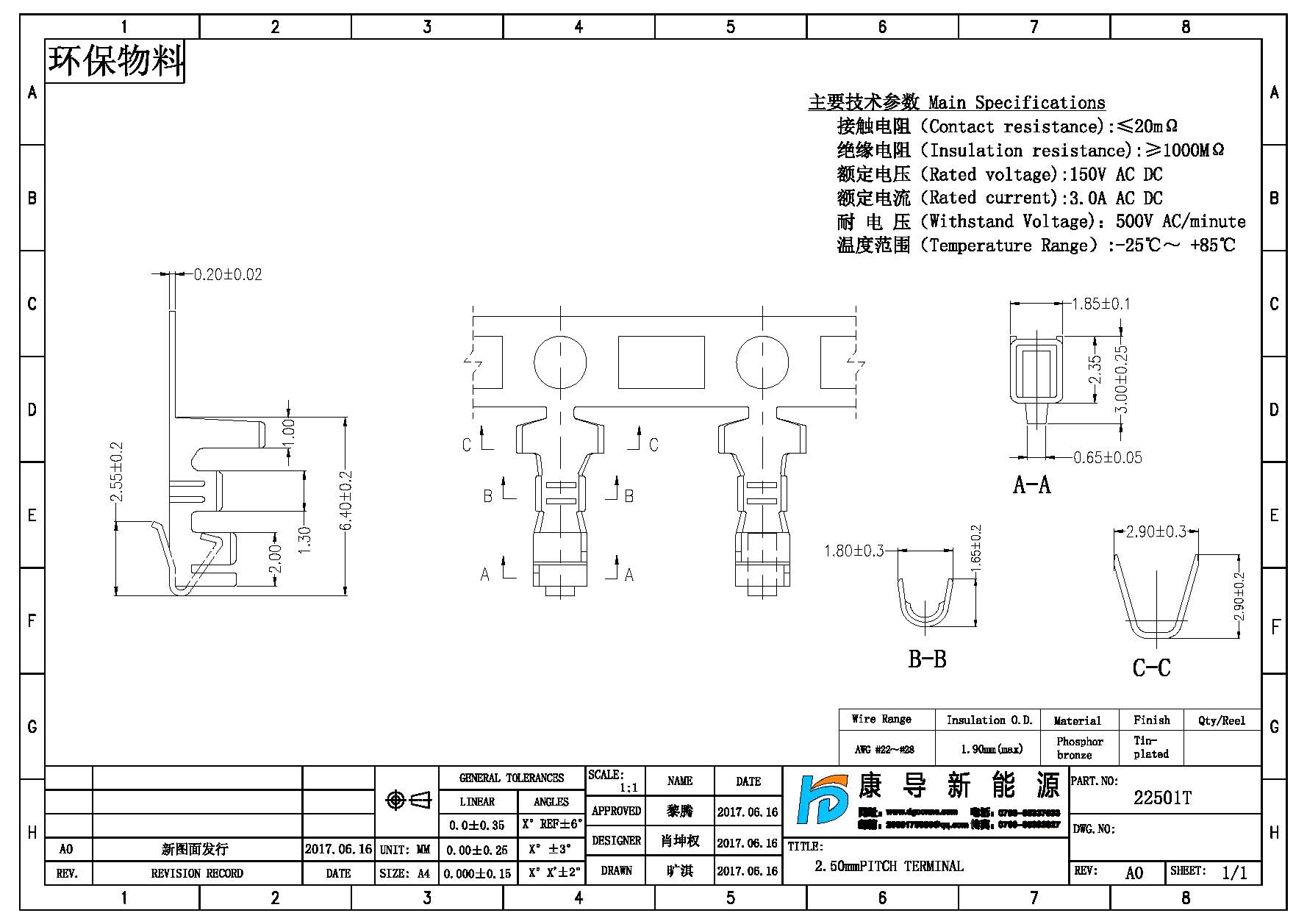

/js/htmledit/kindeditor/attached/20240909/20240909150152_99864.jpg

Spec:2.50mm PITCH TERMINAL
Wrie Range:AWG #22~#28
Insulation O.D.:1.90mm MAX
Material:Phosphor bronze
Plating:Sn
Rated Current:3.0A AC DC
Rated Voltage:150V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-25℃~+85℃
