Product Code:
22501AOrder(MOQ):
3000Product Specifications:
0.098"Wafer Single row of straight pinsProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240909/20240909140256_76220.jpg

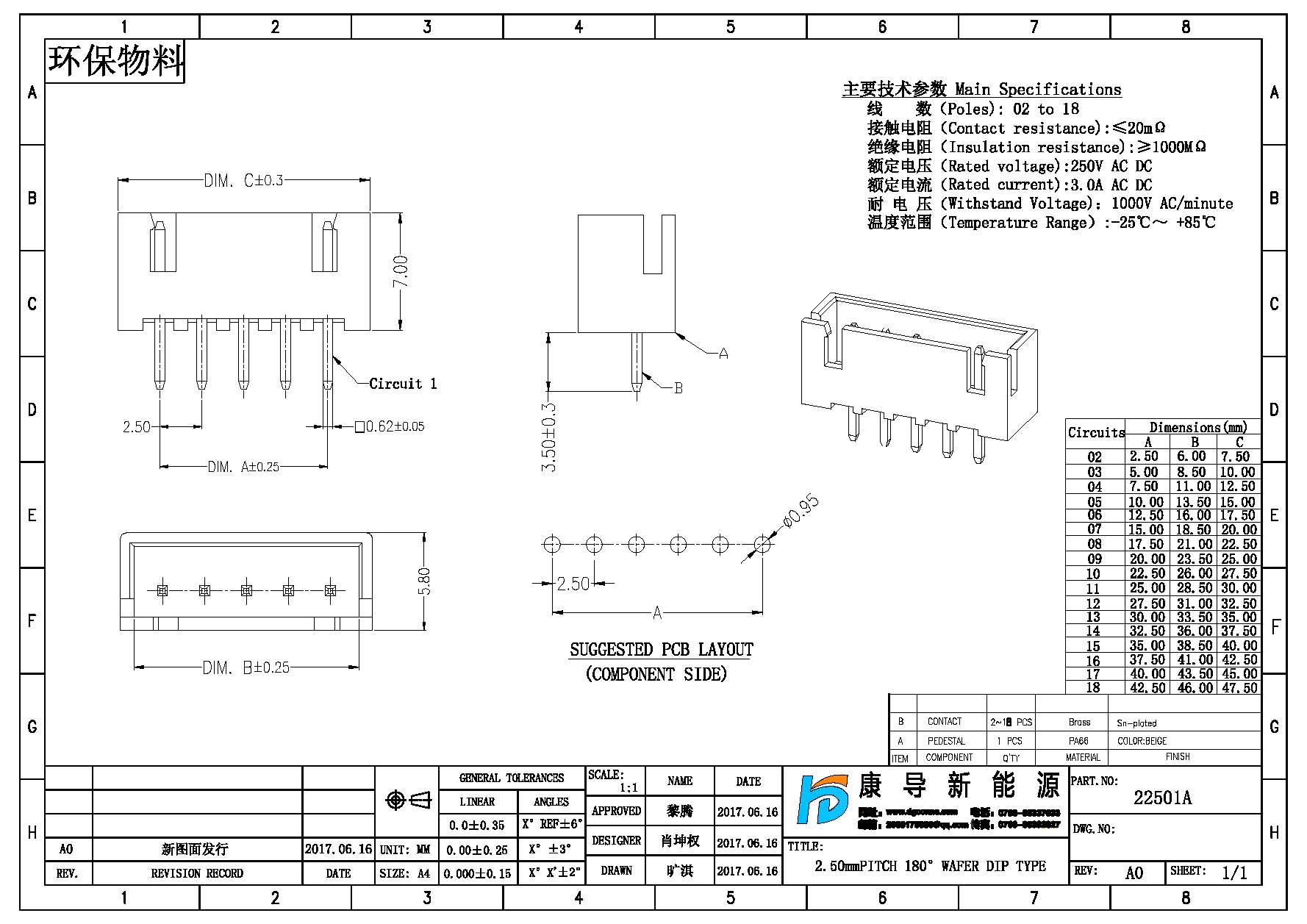

Spec:2.50mm PITCH 180° WAFER DIP TYPE
Poles:2-18
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:3.0A AC DC
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
