2.00MM(.079")
22010A

22010T2

  • Copper Alloy Plating:Tin

  • Product Code:

    22010T2
  • Order(MOQ):

    3000
  • Product Specifications:

    0.079"Female terminal
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240910/20240910095234_57440.jpg

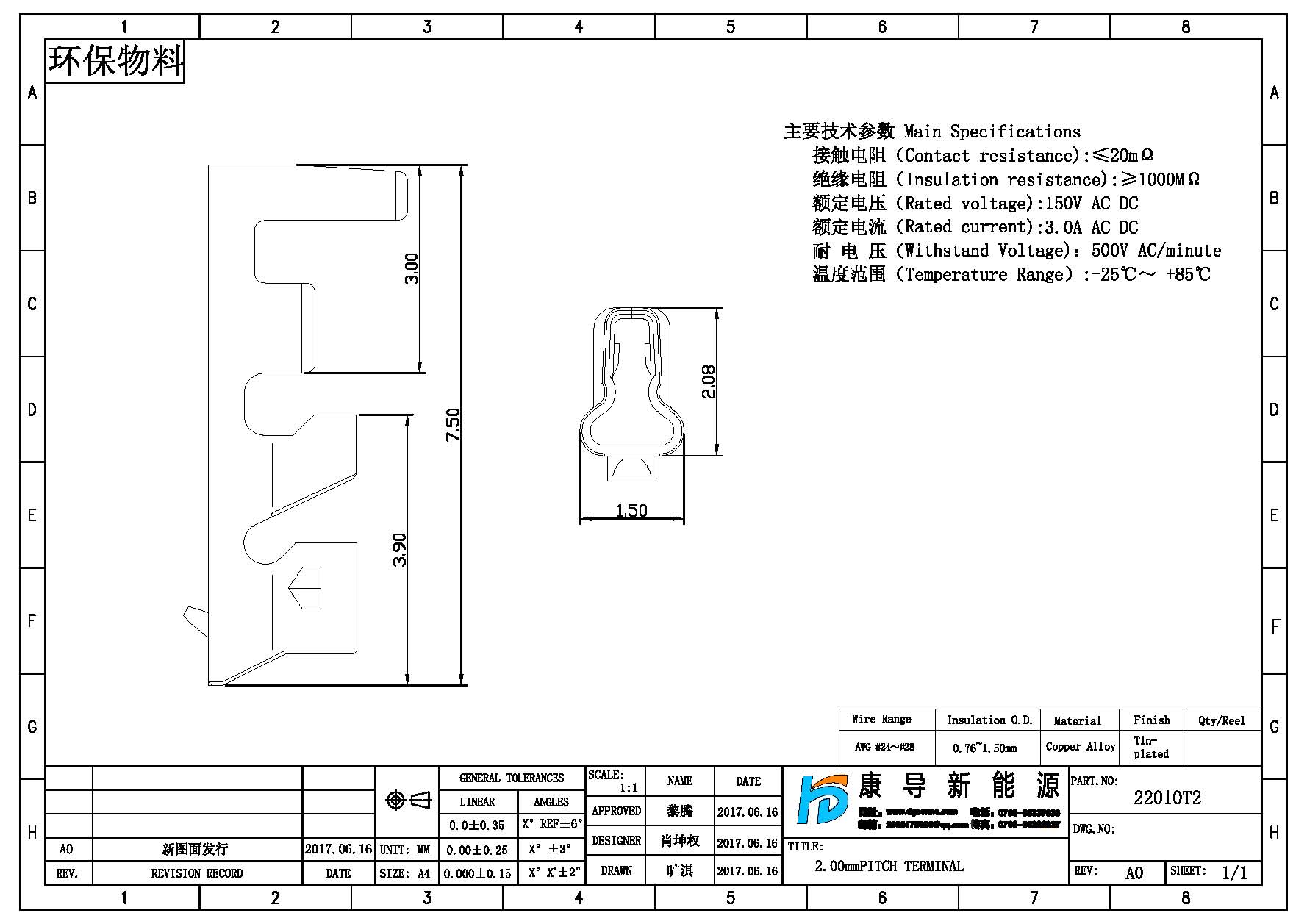

Spec:2.00mm PITCH TERMINAL
Wrie Range:AWG #24~#28
Insulation O.D.:0.76-1.50mm
Material:Copper Alloy
Plating:Tin
Rated Current:3.0A AC DC
Rated Voltage:150V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-25℃~+85
