Product Code:
22009AWVOrder(MOQ):
3000Product Specifications:
0.079"Single row patc Vertical stickerProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240910/20240910112418_40818.jpg

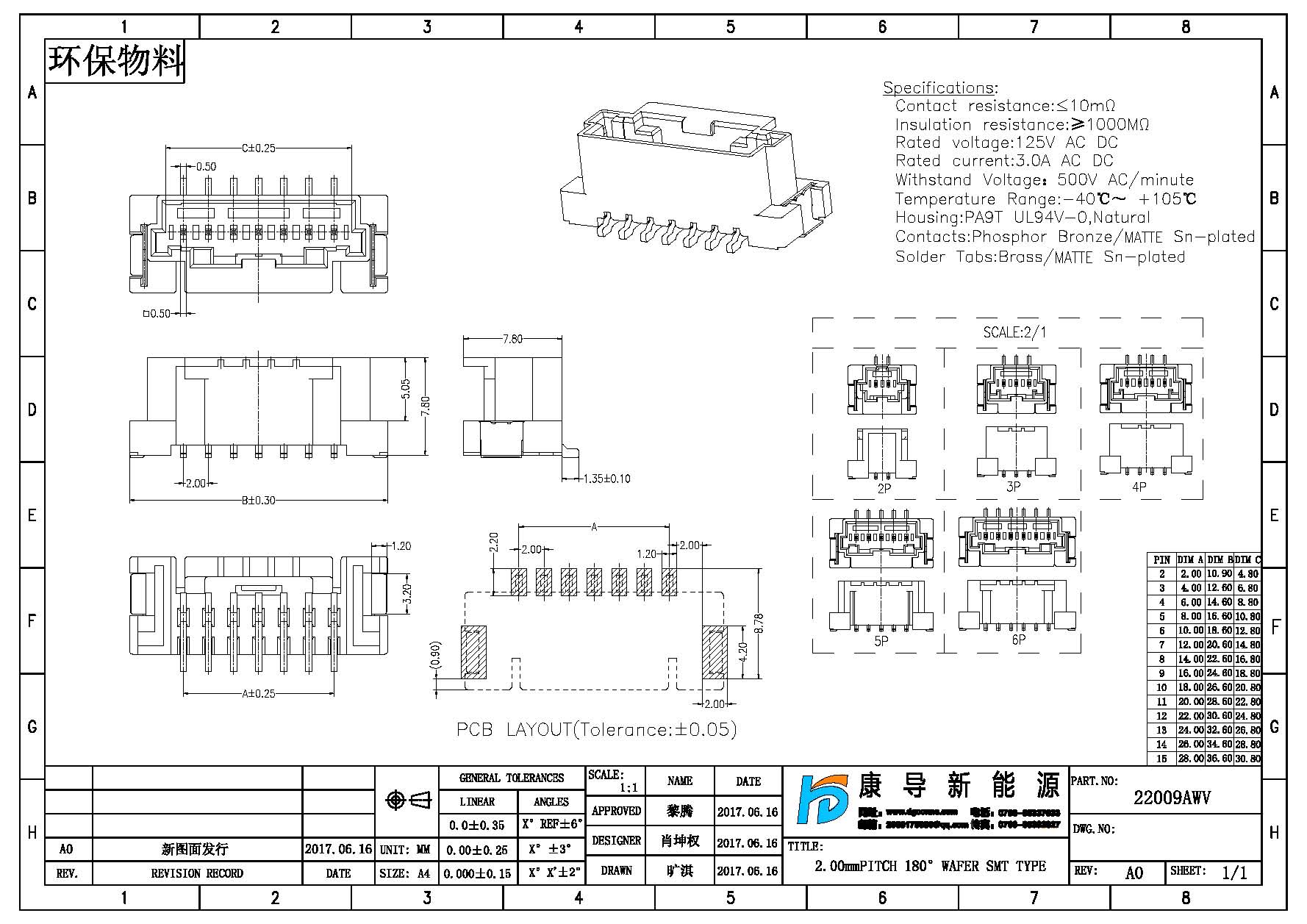

Spec:2.00mm PITCH 180° WAFER SMT TYPE
Poles:02-15
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:125V AC DC
Rated Current:3.0A AC DC
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
