Product Code:
22006TOrder(MOQ):
3000Product Specifications:
0.079"Female terminalProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240911/20240911084948_56687.jpg

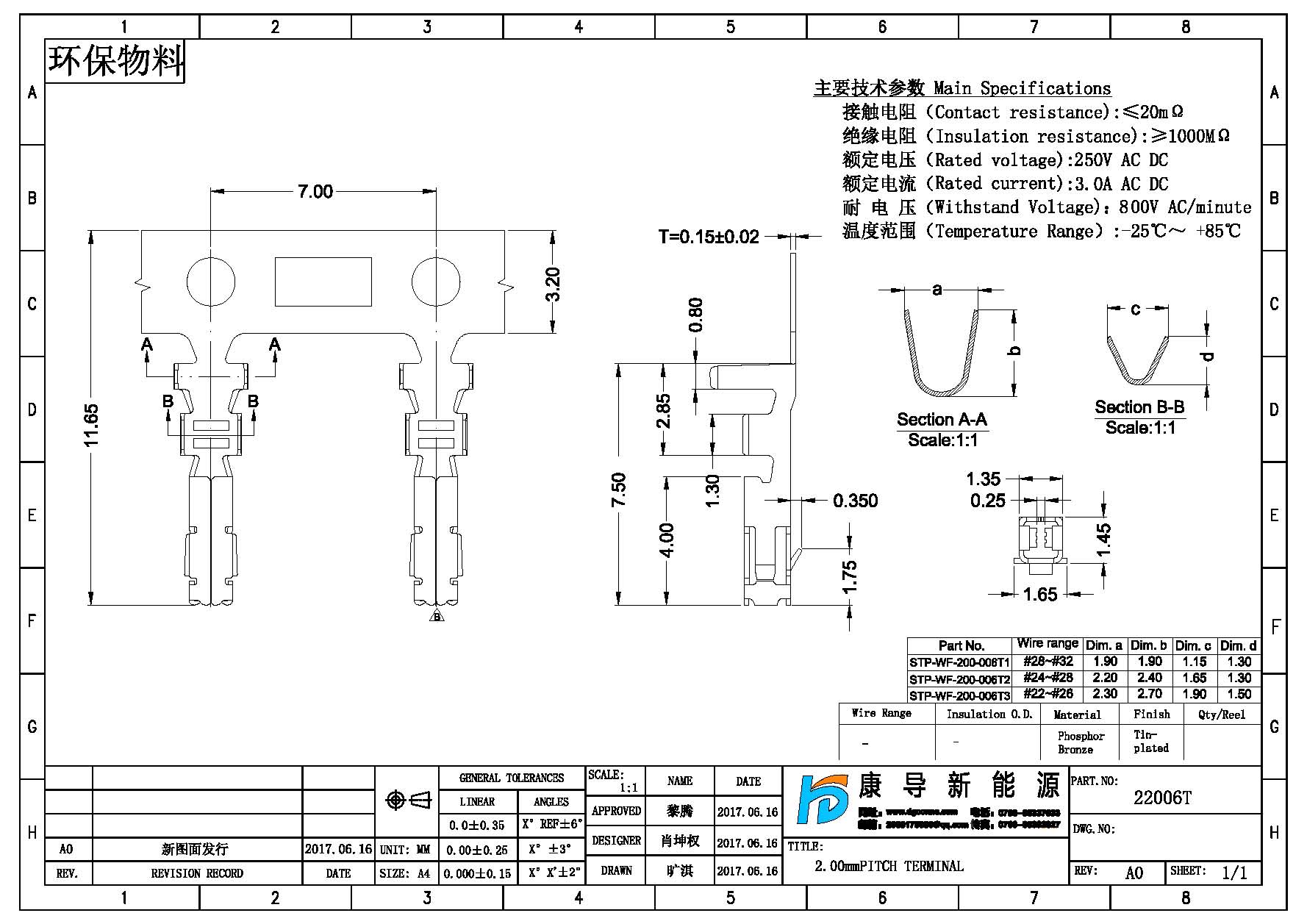

Spec:2.00mm PITCH TERMINAL
Wrie Range:AWG #22~#32
Insulation O.D.:1.90-2.30mm
Material:Phosphor Bronze
Plating:Sn
Rated Current:3.0A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:800V AC/minute
Temperature Range:-25℃~+85℃
