Product Code:
22005AWROrder(MOQ):
3000Product Specifications:
0.079"Wafer Double row curved needleProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240911/20240911085536_28116.jpg

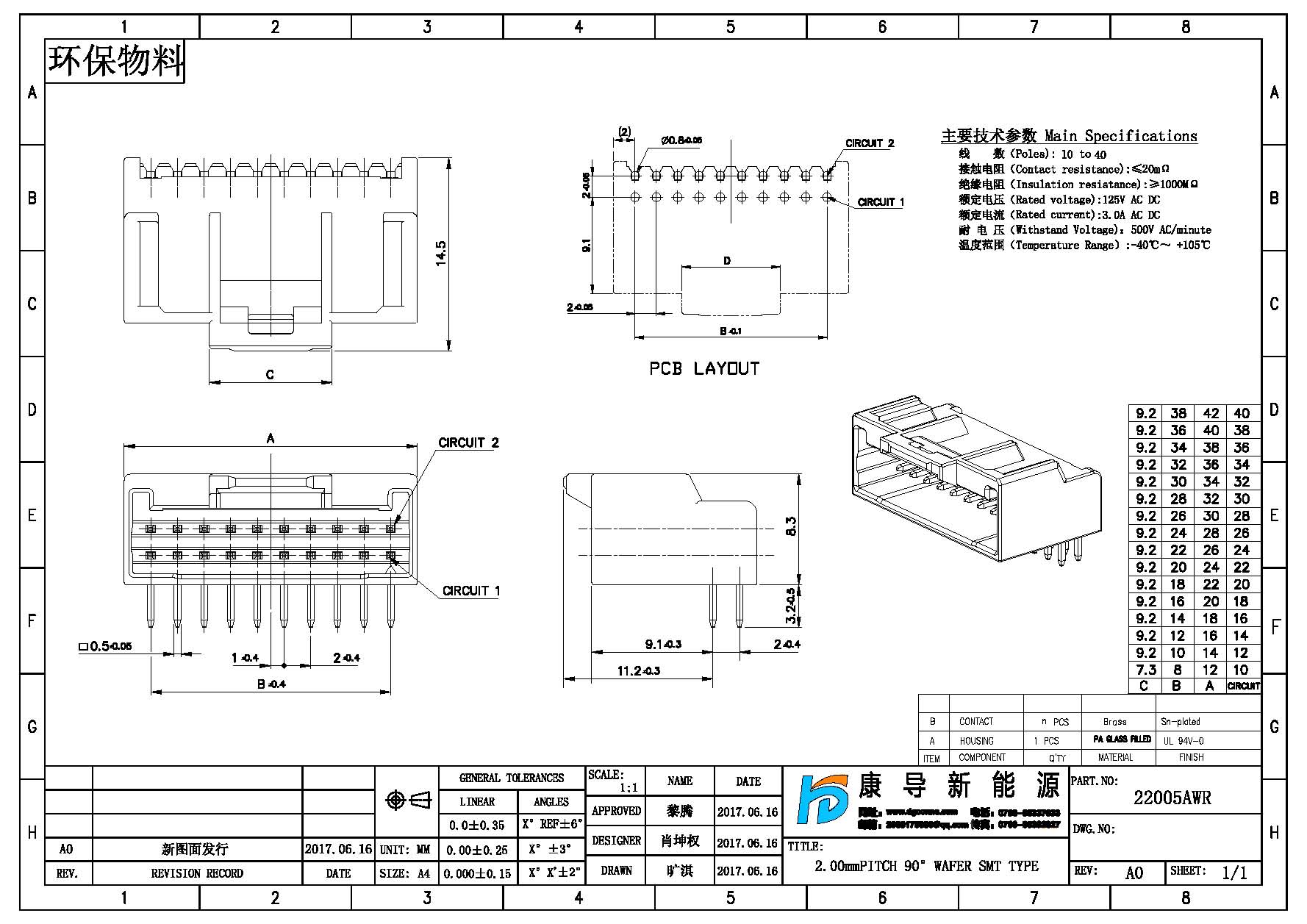

Spec:2.00mm PITCH 90° WAFER SMT TYPE
Poles:10-40
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:125V AC DC
Rated Current:3.0A AC DC
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
