2.00MM(.079")
22004A

22004AWD

  • Product Code:

    22004AWD
  • Order(MOQ):

    3000
  • Product Specifications:

    0.079"Wafer Double row curved needle winged
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240911/20240911133328_32170.jpg

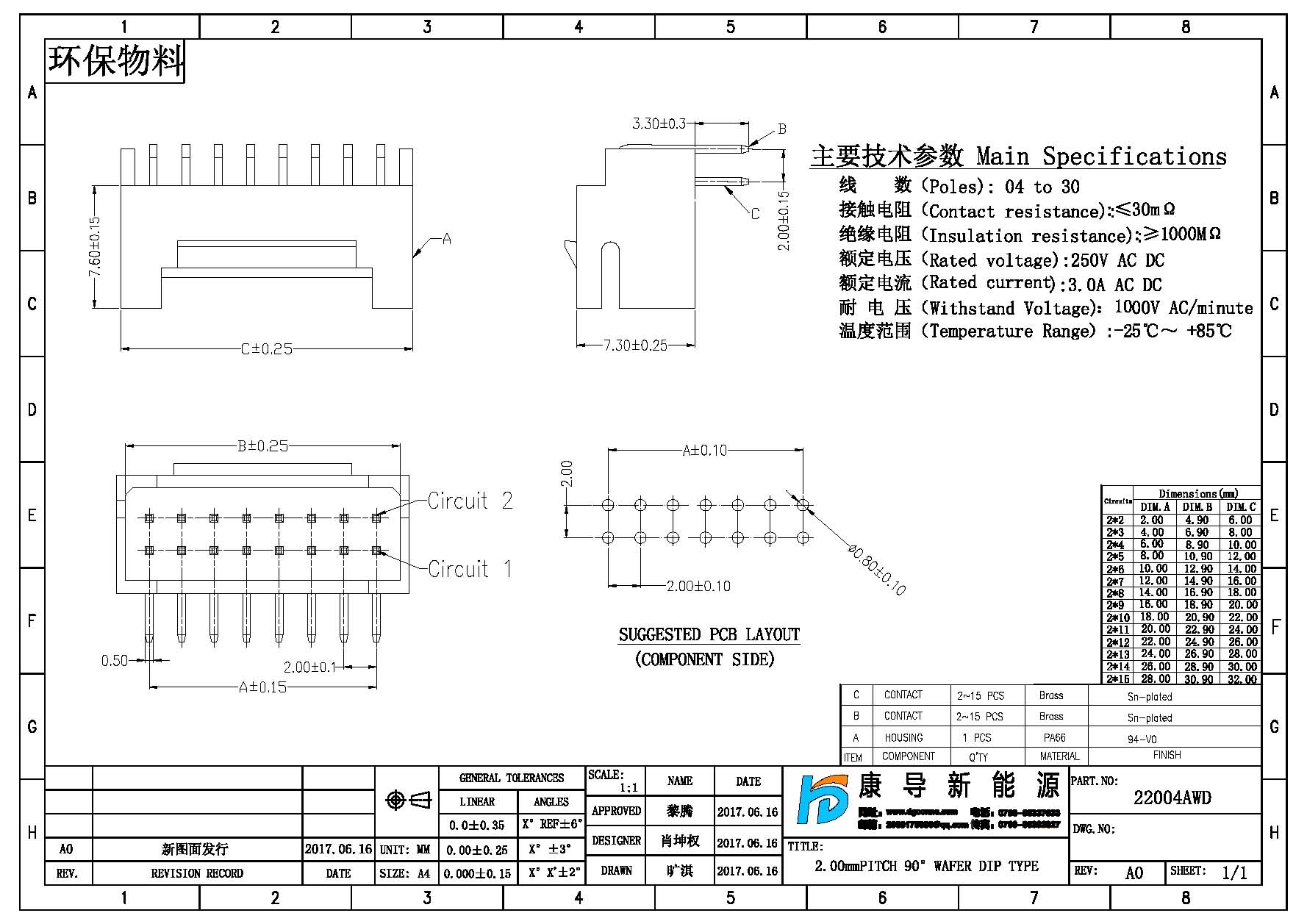

Spec:2.00mm PITCH 90° WAFER DIP TYPE
Poles:04-30
Contact resistance:30mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:3.0A AC DC
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
