1.00MM(.039")
21003AW

21003T

  • Product Code:

    21003T
  • Order(MOQ):

    3000
  • Product Specifications:

    0.039"Female terminal
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

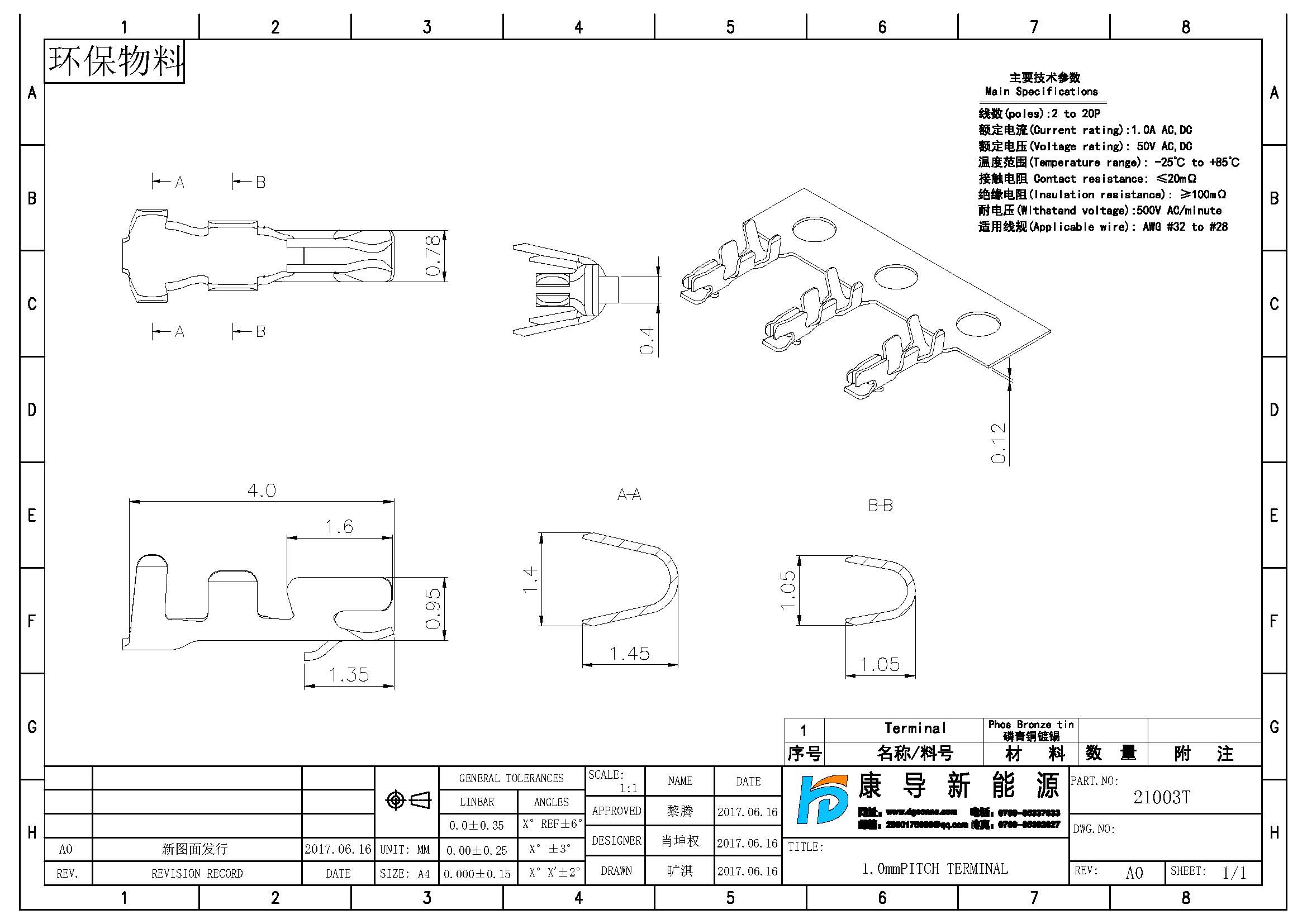

/js/htmledit/kindeditor/attached/20241007/20241007082453_83403.jpg

Spec:1.0mm PITCH TERMINAL
Wrie Range:AWG #28~#32
Insulation O.D.:0.4~0.8mm
Material:Phosphor bronze
Plating:Sn
Rated Current:1.0A AC DC
Rated Voltage:50V AC DC
Contact resistance:20mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-25℃~+85℃
