2.50MM(.098")
Home /

Pin Header

/

2.50MM(.098")

/

KDPH-0073

KDPH-0073

KDPH-0073

  • Product Code:

    KDPH-0073
  • Order(MOQ):

    3000
  • Product Specifications:

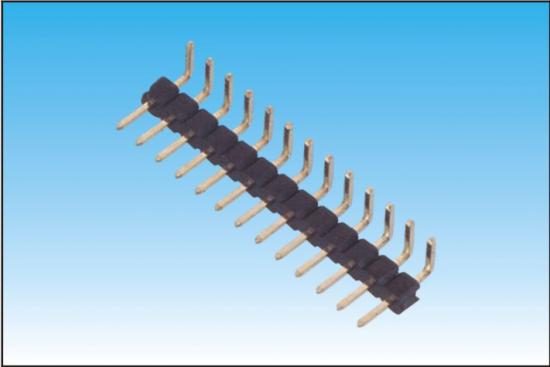

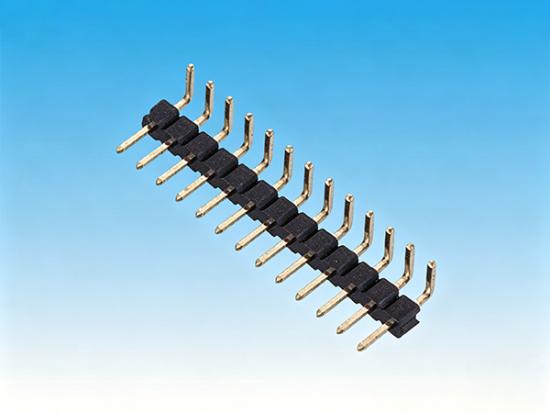

    0.098"Pin Header,Single Plastic,Single Row,Right Angle Type
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

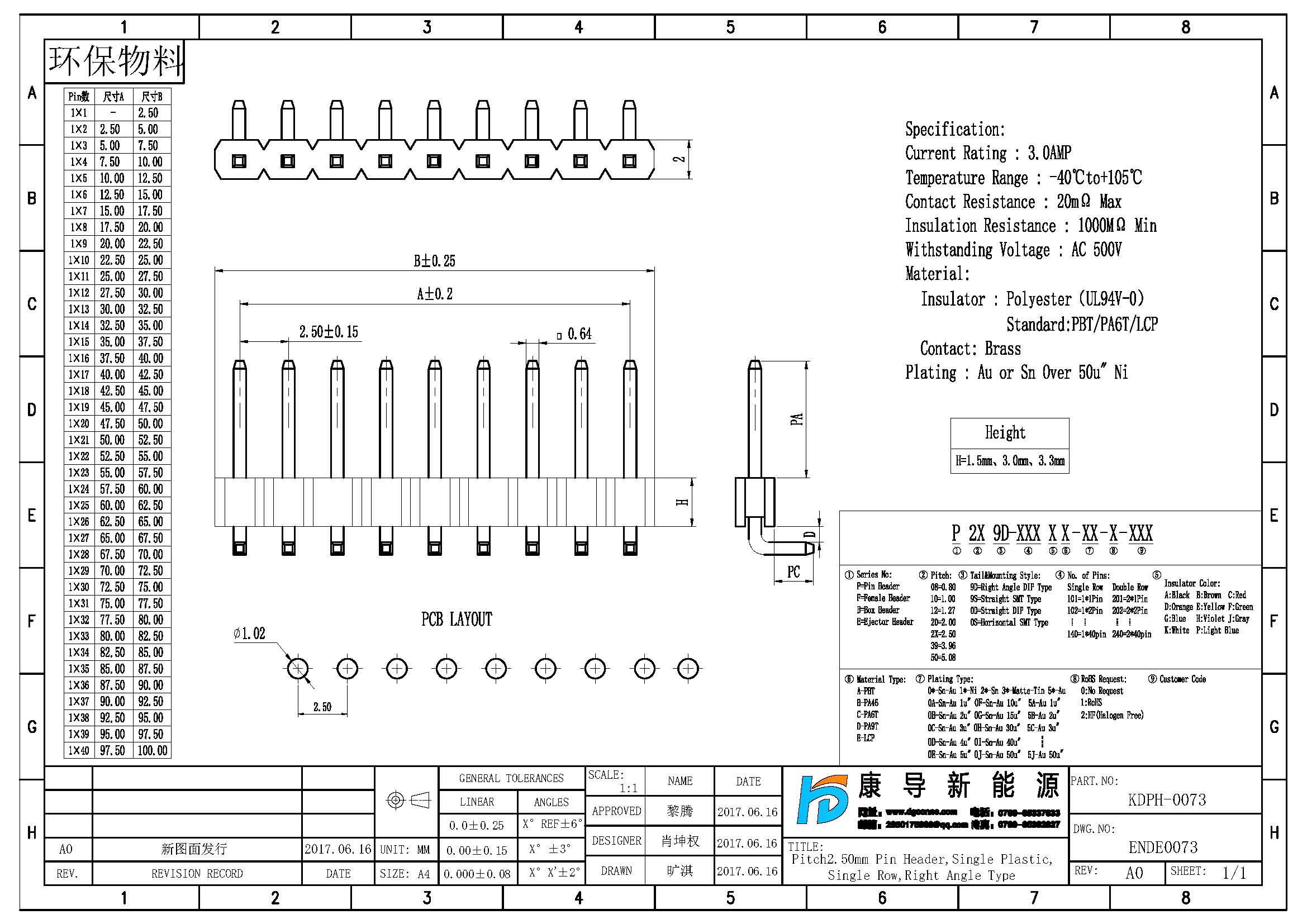

/js/htmledit/kindeditor/attached/20240828/20240828095741_19850.jpg

Spec:Pitch2.50mm Pin Header,Single Plastic,Single Row,Right Angle Type
Pins:1*1-1*40
Plastics Height:1.5/3.0/3.3MM
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
