1.27*2.54MM(.050")
KDPH-0038

KDPH-0038

  • Product Code:

    KDPH-0038
  • Order(MOQ):

    3000
  • Product Specifications:

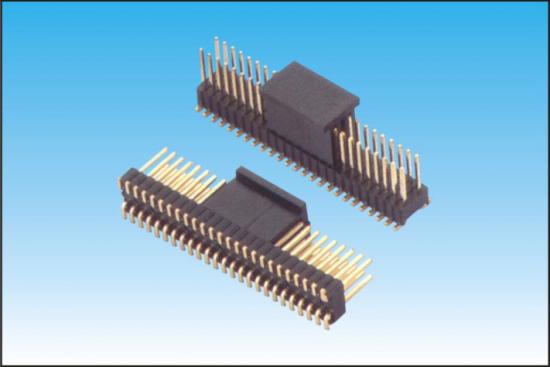

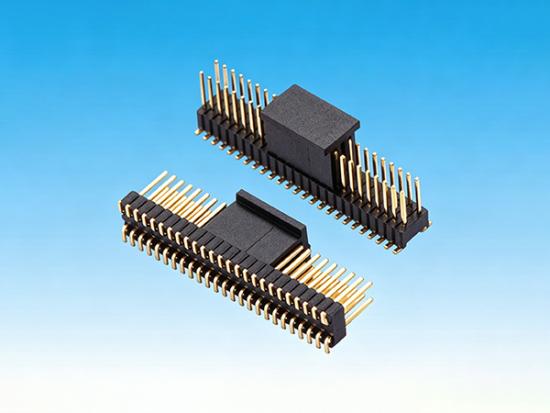

    0.050"Pin Header,Dual Row, Dual Plastic, DIP Type
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

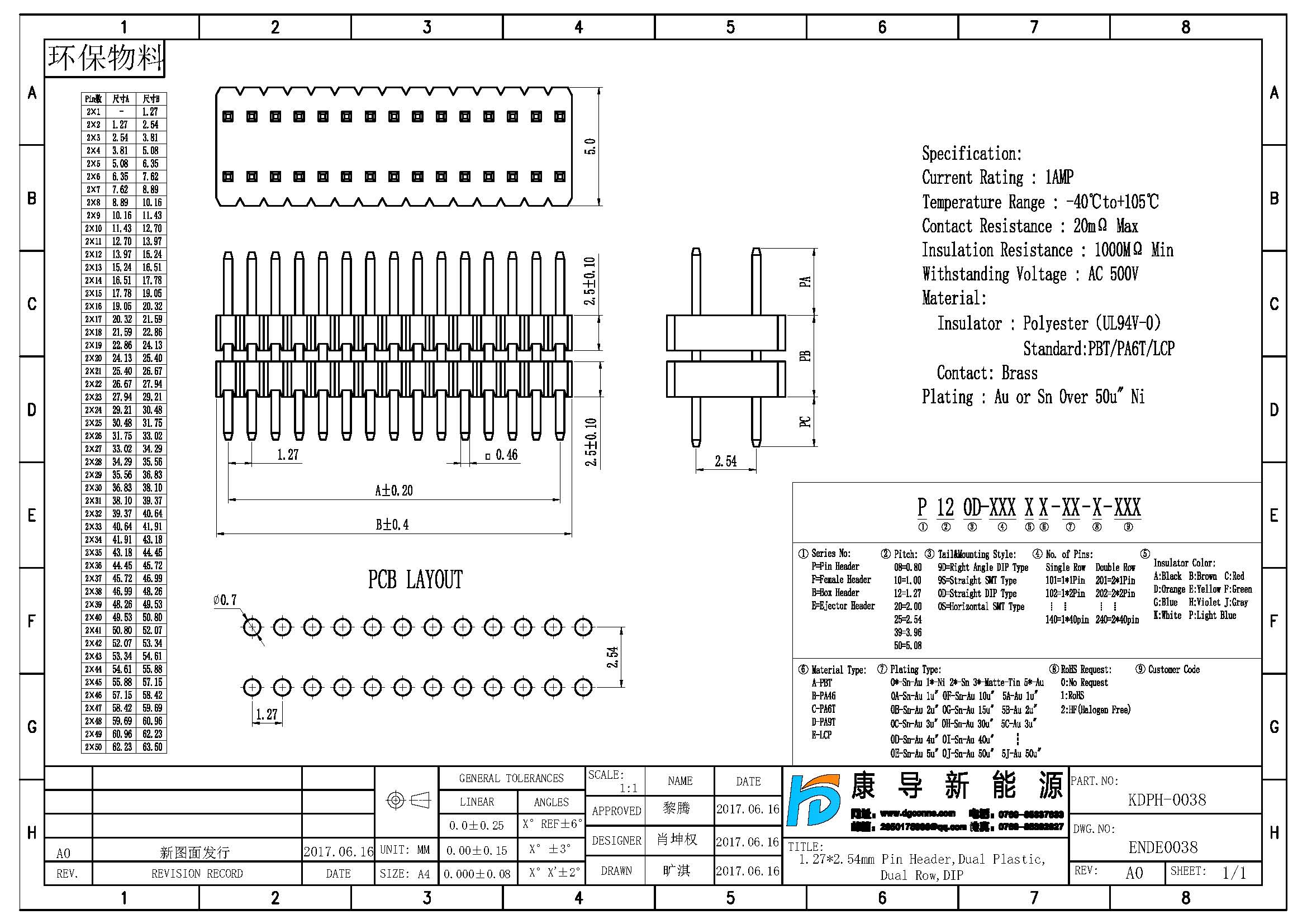

/js/htmledit/kindeditor/attached/20240829/20240829080549_52938.jpg

Spec:Pitch1.27*2.54MM Pin Header,Dual Row, Dual Plastic, DIP Type
Pins:2*1-2*50
Plastics Height:2.50MM
Rated Voltage:250V AC DC
Rated Current:1A AC DC
Contact resistance:20mΩ Max
Insulation resistance:500MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
