Pin Header

 /

1.27MM(.050")

 /

KDPH-0027

KDPH-0027

KDPH-0027

PIN:2*1-2*50P H:0.65/1.0/1.5/1.7/2.0/2.54MM

  • Product Code:

    KDPH-0027

  • Order(MOQ):

    3000

  • Product Specifications:

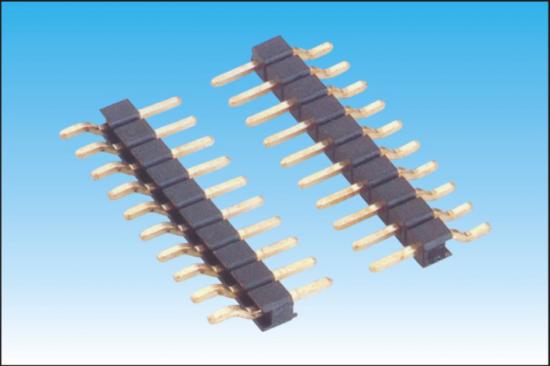

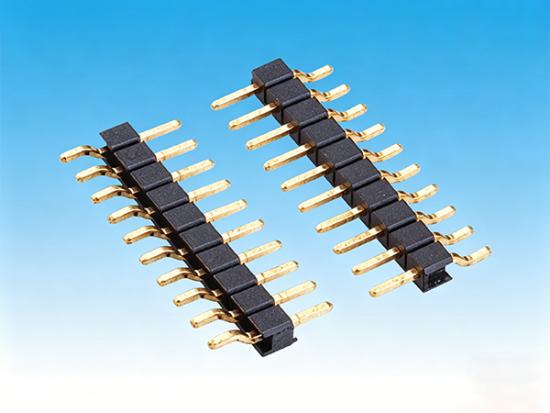

    0.050"Pin Header,Single Row, Single Plastic, Horizotal SMT Type

  • Product Origin:

    Xiamen City, China.

  • Color:

    Red, yellow, blue, green, brown, black, white, grey

  • Shipping Port:

    Xiamen port, China.

  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.
Inquire Now

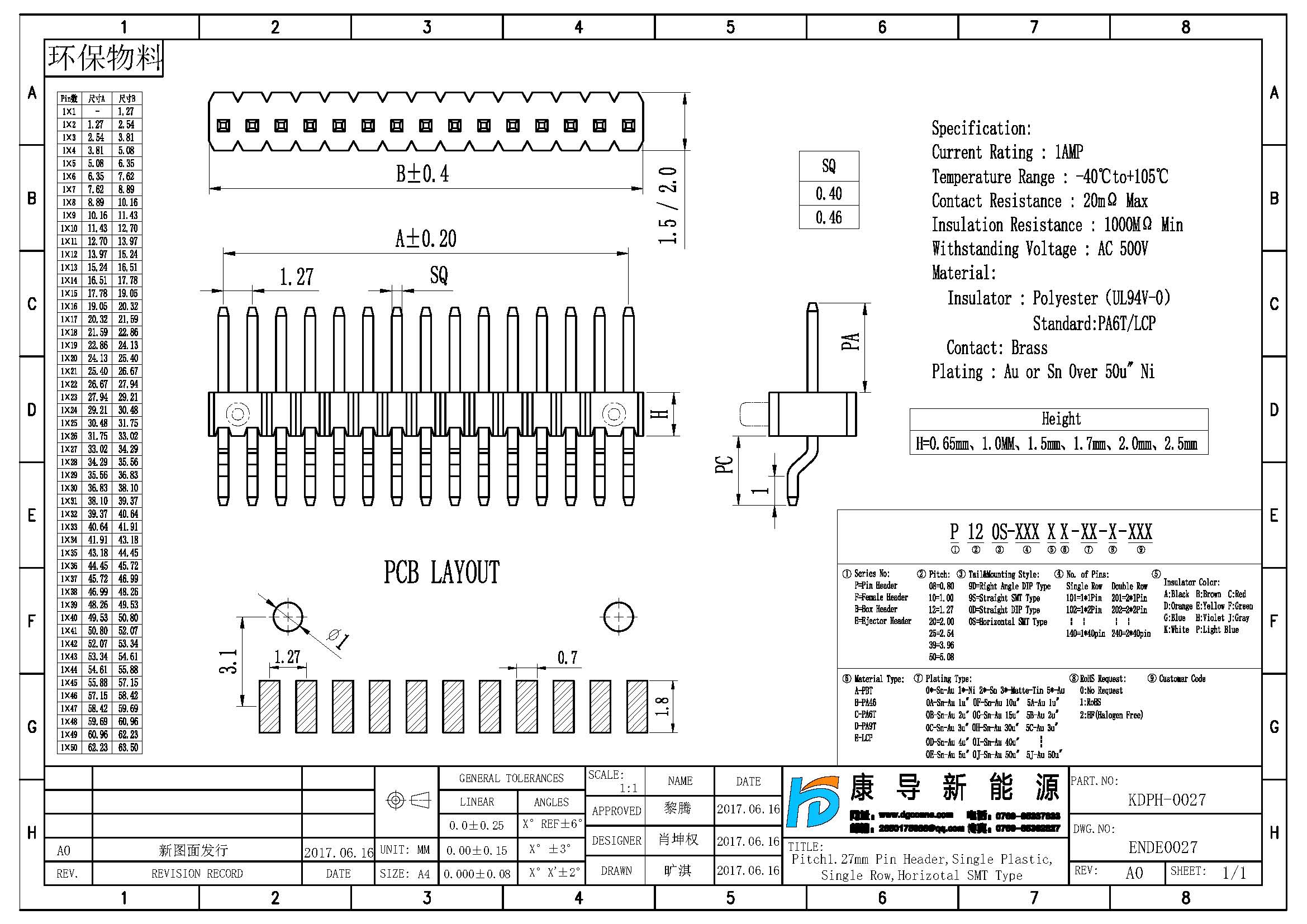

/js/htmledit/kindeditor/attached/20240829/20240829084346_24834.jpg

Spec：Pitch1.27MM Pin Header,Single Row, Single Plastic, Horizotal SMT Type
Pins：1*2-1*50
Plastics Height：0.65/1.0/1.5/1.7/2.0/2.54MM
Rated Voltage：250V AC DC
Rated Current：1A AC DC
Contact resistance：20mΩ Max
Insulation resistance：500MΩ Min
Withstand Voltage：500V AC/minute
Temperature Range：-40℃~+105℃
