0.80MM(.031")
Home /

Pin Header

/

0.80MM(.031")

/

KDPH-0003

KDPH-0003

KDPH-0003

  • Product Code:

    KDPH-0003
  • Order(MOQ):

    3000
  • Product Specifications:

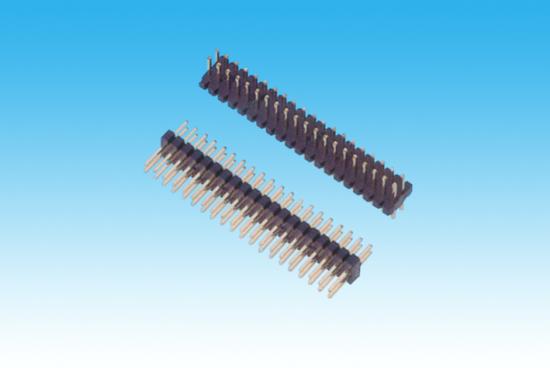

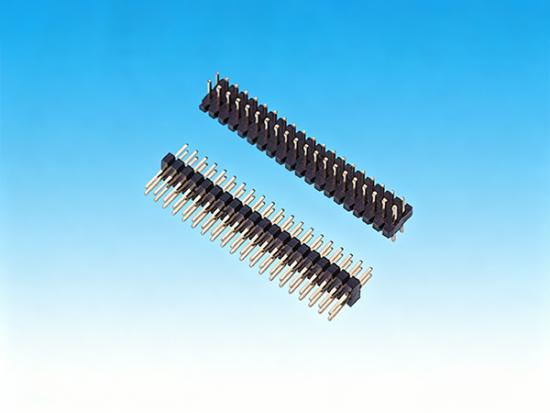

    0.031"Pin Header,Dual Row,Single Plastic, DIP Type
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

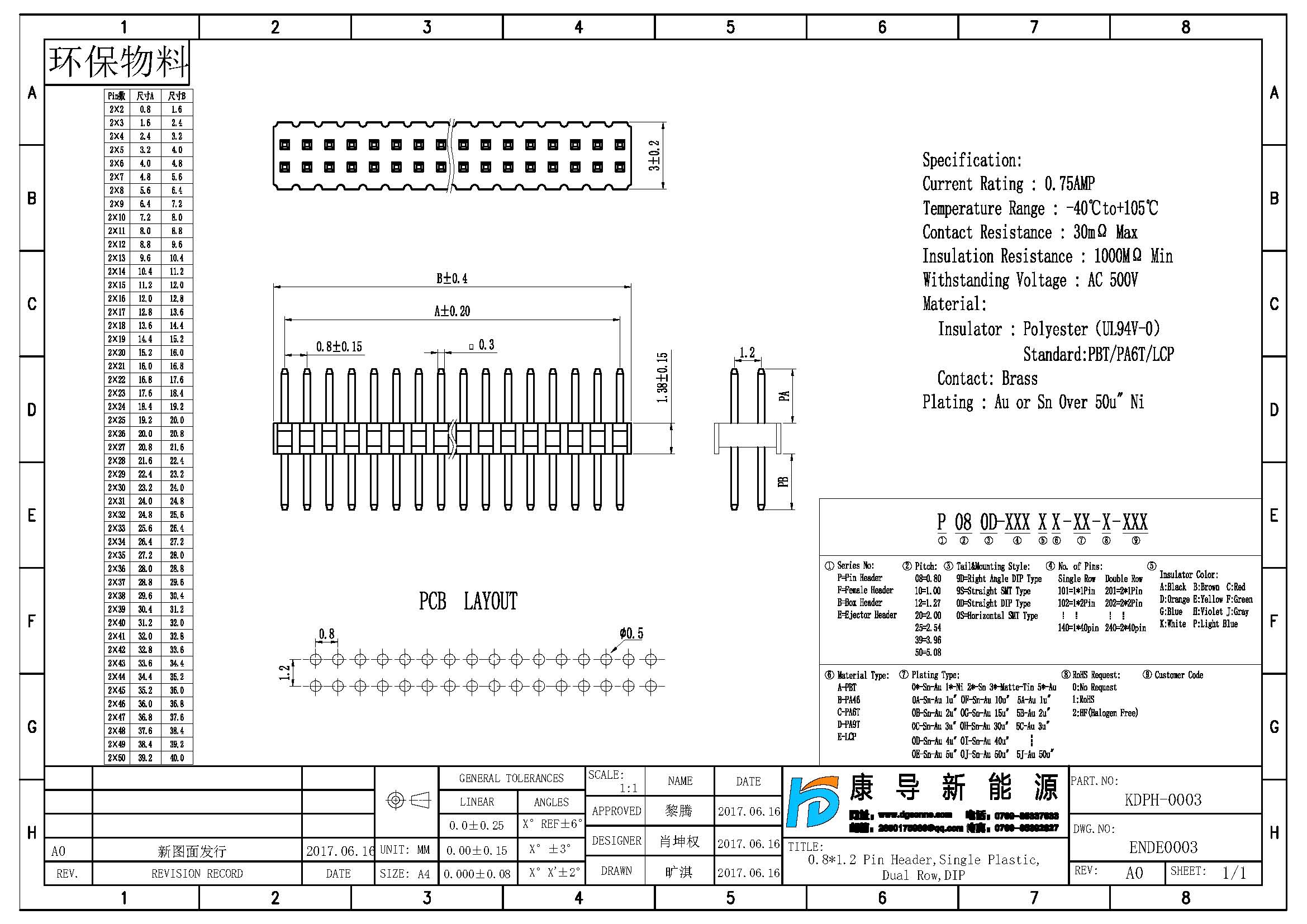

/js/htmledit/kindeditor/attached/20240829/20240829135548_88875.jpg

 Spec:Pitch0.8*1.2MM Pin Header,Dual Row,Single Plastic, DIP Type
Pins:2*2-2*50
Plastics Height:1.38MM
Rated Voltage:250V AC DC
Rated Current:0.75A AC DC
Contact resistance:30mΩ Max
Insulation resistance:500MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
