5.08MM(.200")
Home /

Female Header

/

5.08MM(.200")

/

KDFH-0215

KDFH-0215

KDFH-0215

  • Product Code:

    KDFH-0215
  • Order(MOQ):

    3000
  • Product Specifications:

    0.220"Pitch5.08MM Female Header,Single Row,DIP Type (U)
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

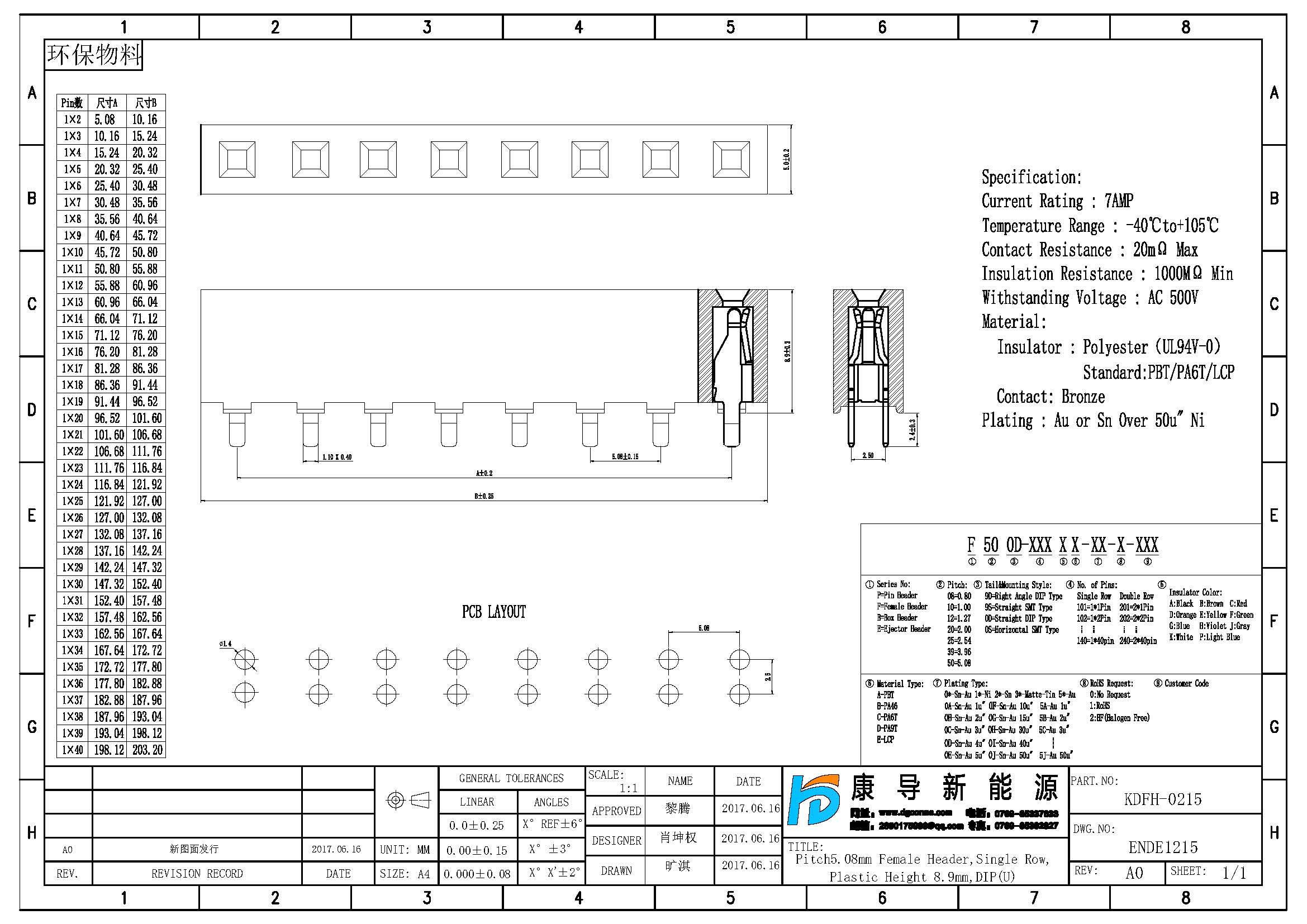

/js/htmledit/kindeditor/attached/20240829/20240829142129_47516.jpg

Spec:Pitch5.08MM Female Header,Single Row,DIP Type (U)
Pins:1*2-1*40
Plastics Height:8.9MM
Rated Voltage:250V AC DC
Rated Current:7A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
