2.54MM(.100")
Home /

Female Header

 /

2.54MM(.100")

 /

KDFH-0186

KDFH-0186

KDFH-0115

PIN:1*2-1*40P H:7.1MM

  • Product Code:

    KDFH-0115

  • Order(MOQ):

    3000

  • Product Specifications:

    0.100

  • Product Origin:

    Xiamen City, China.

  • Color:

    Red, yellow, blue, green, brown, black, white, grey

  • Shipping Port:

    Xiamen port, China.

  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.
Inquire Now

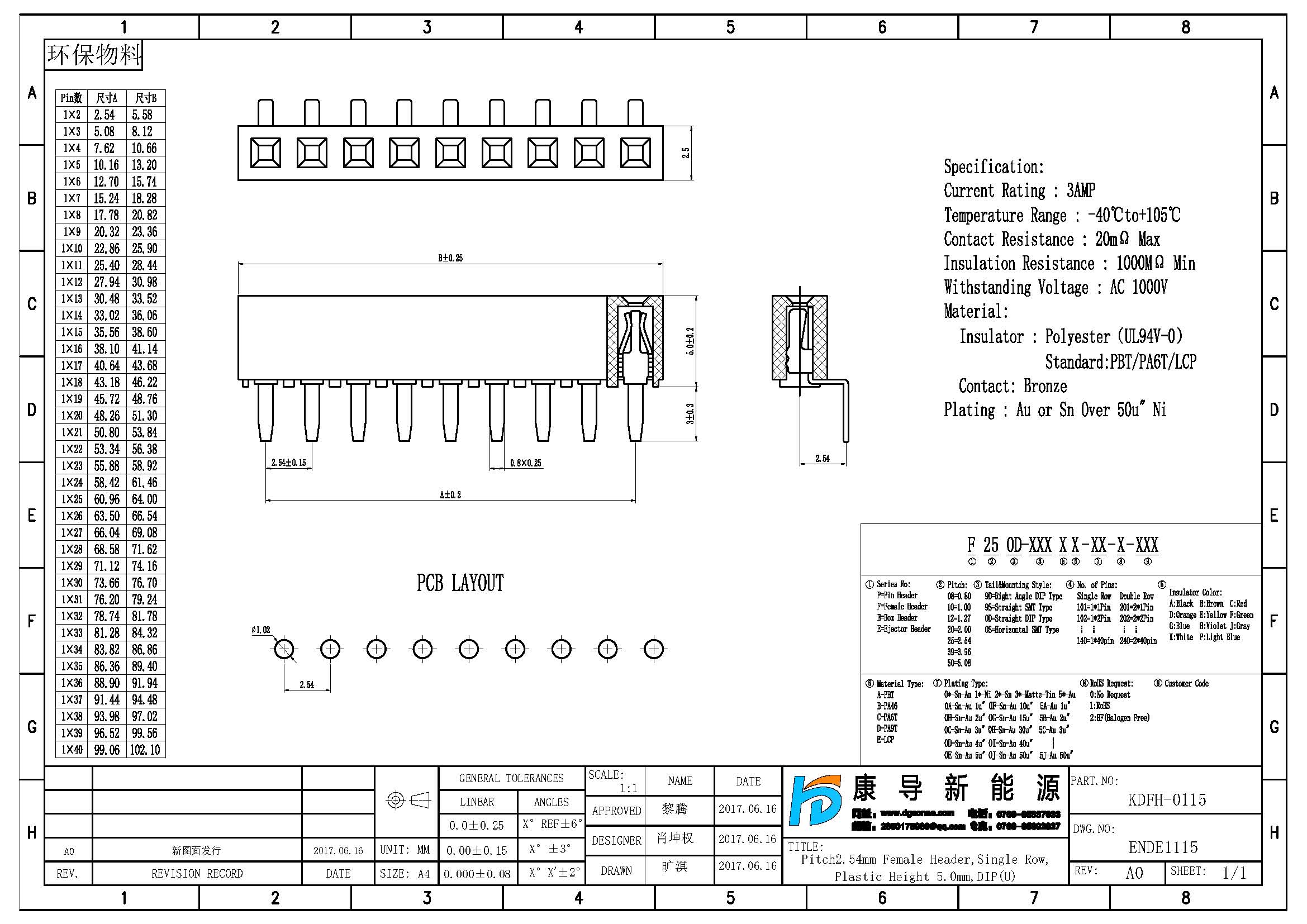

/js/htmledit/kindeditor/attached/20240830/20240830093708_96909.jpgSpec：Pitch2.54MM Female Header,Single Row, Bottom Entry DIP Type (U)
Pins：1*2-1*40
Plastics Height：5.0MM
Rated Voltage：250V AC DC
Rated Current：3A AC DC
Contact resistance：20mΩ Max
Insulation resistance：1000MΩ Min
Withstand Voltage：1000V AC/minute
Temperature Range：-40℃~+105℃
