Product Code:
KDFH-0141Order(MOQ):
3000Product Specifications:

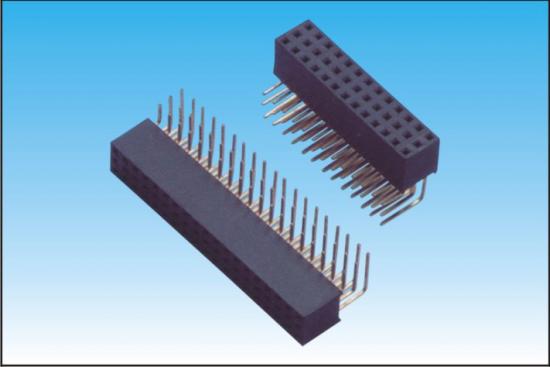

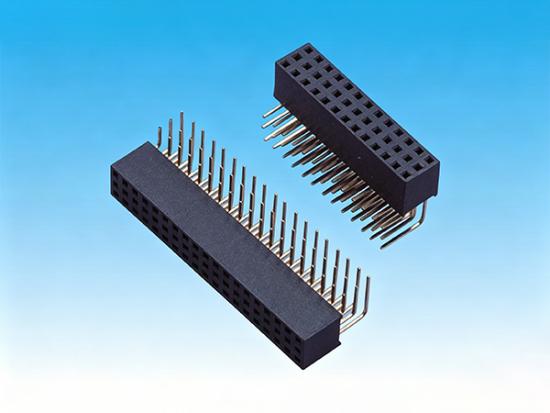

0.100"Female Header,Triple Row, Right Angle Type (Y)Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

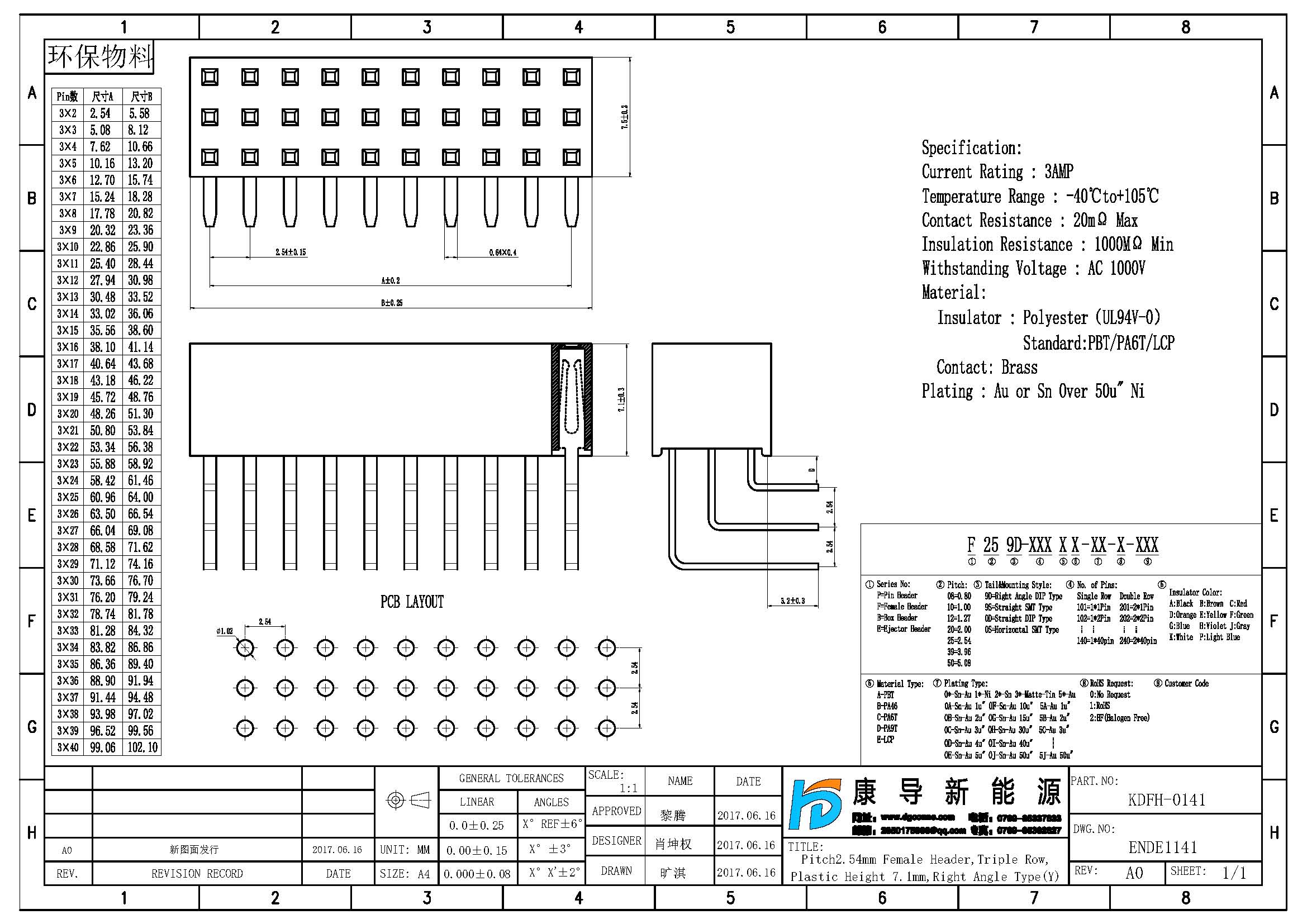

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240831/20240831104842_89482.jpg
Spec:Pitch2.54MM Female Header,Triple Row, Right Angle Type (Y)
Pins:3*2-3*40
Plastics Height:7.1MM
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
