1.27*2.54MM(.050")
KDFH-0059

KDFH-0059

  • Product Code:

    KDFH-0059
  • Order(MOQ):

    3000
  • Product Specifications:

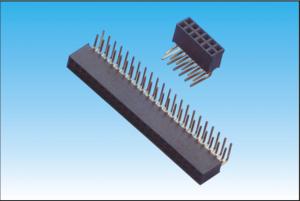

    0.050"Female Header,Dual Row, DIP Type (Y)
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

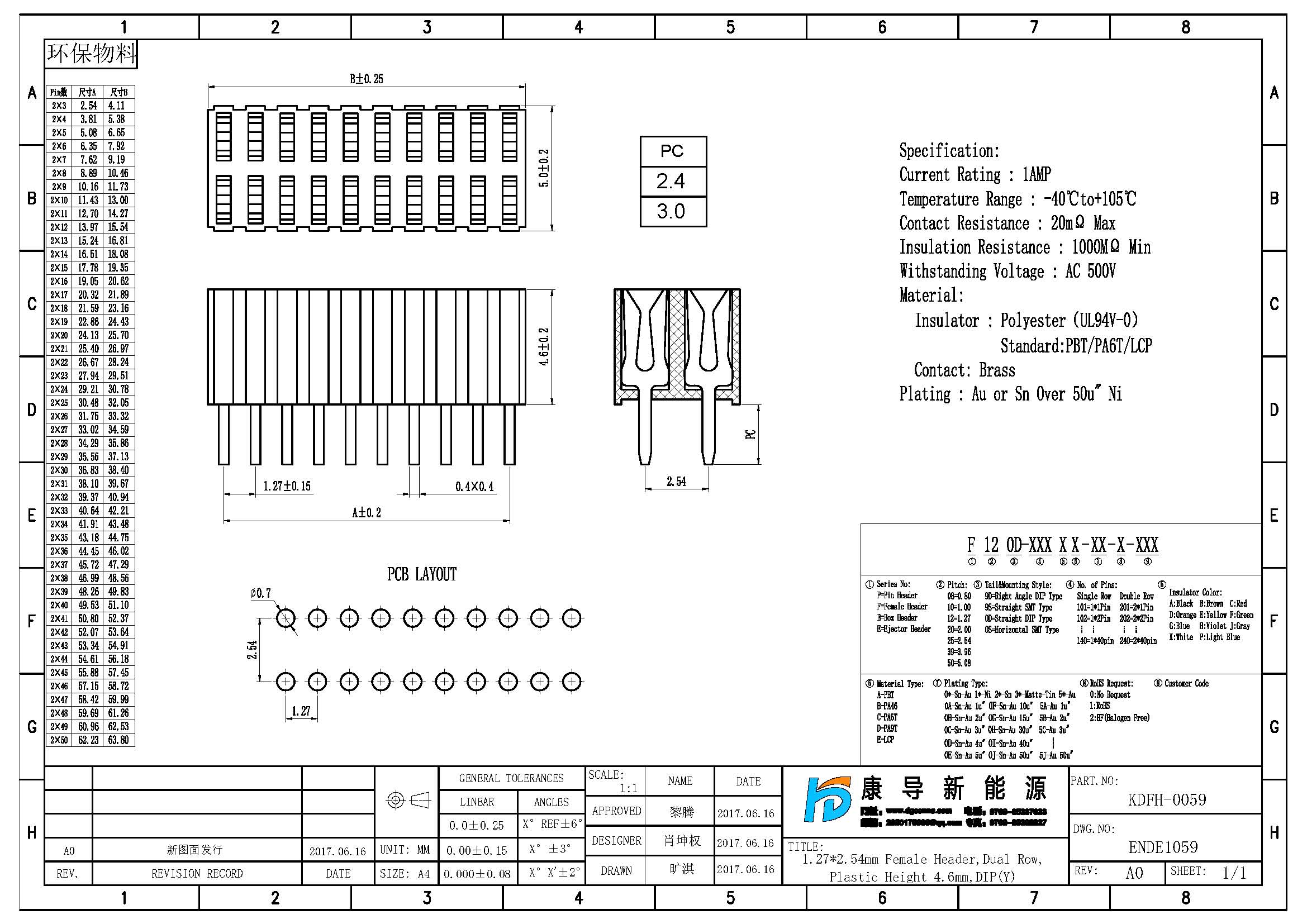

/js/htmledit/kindeditor/attached/20240903/20240903094056_42830.jpg

Spec:Pitch1.27MM Female Header,Dual Row, DIP Type (Y)
Pins:2*2-2*50
Plastics Height:4.6MM
Rated Voltage:250V AC DC
Rated Current:1A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
