1.27MM(.050")
Home /

Female Header

/

1.27MM(.050")

/

KDFH-0054

KDFH-0054

KDFH-0054

  • Product Code:

    KDFH-0054
  • Order(MOQ):

    3000
  • Product Specifications:

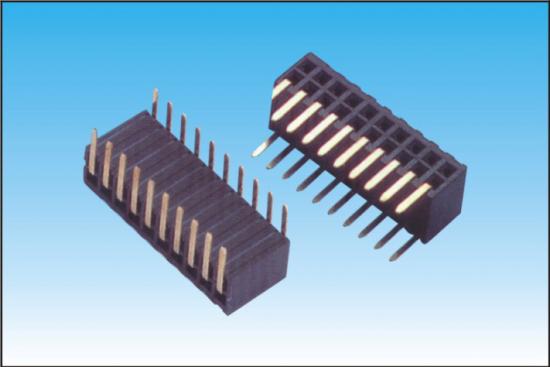

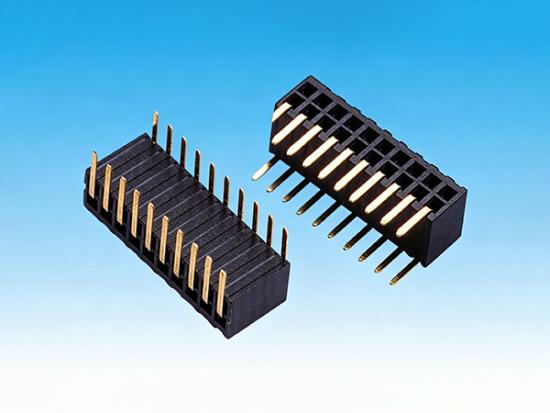

    0.050"Female Header,Dual Row, Right Angle Type (U)
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240903/20240903100109_75112.jpg

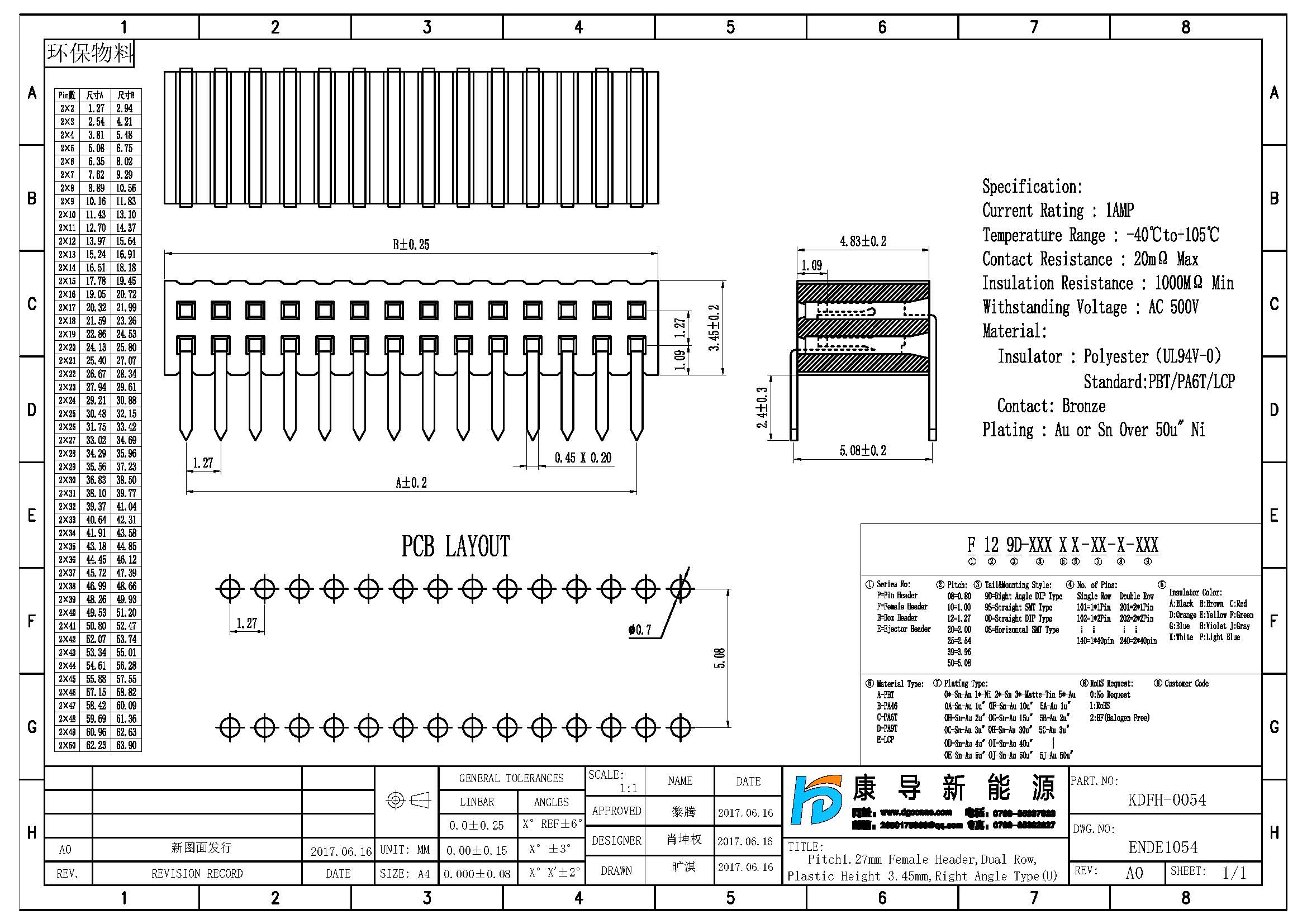

Spec:Pitch1.27MM Female Header,Dual Row, Right Angle Type (U)
Pins:2*2-2*50
Plastics Height:3.45MM
Rated Voltage:250V AC DC
Rated Current:1A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
