1.00MM(.039")
Home /

Female Header

/

1.00MM(.039")

/

KDFH-0007

KDFH-0007

KDFH-0007

  • Product Code:

    KDFH-0007
  • Order(MOQ):

    3000
  • Product Specifications:

    0.039"Female Header,Dual Row,DIP Type (U)
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

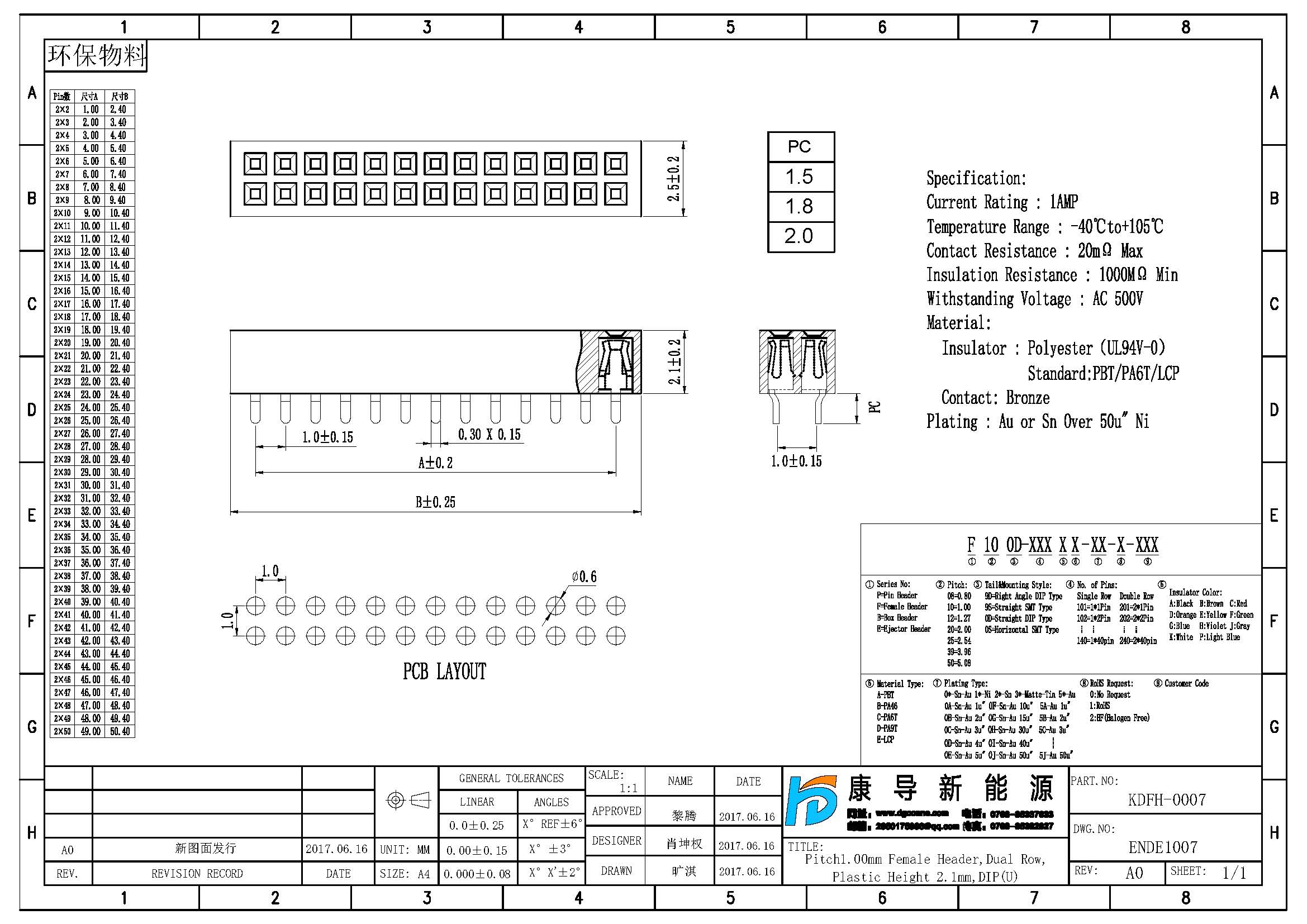

/js/htmledit/kindeditor/attached/20240903/20240903162000_46251.jpg

Spec:Pitch1.00MM Female Header,Dual Row,DIP Type (U)
Pins:2*2-2*50
Plastics Height:2.1MM
Rated Voltage:250V AC DC
Rated Current:1A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
