1.27MM(.050")
KDBH-0013

KDBH-0013

  • Product Code:

    KDBH-0013
  • Order(MOQ):

    3000
  • Product Specifications:

    0.050"box header, Right Angle
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

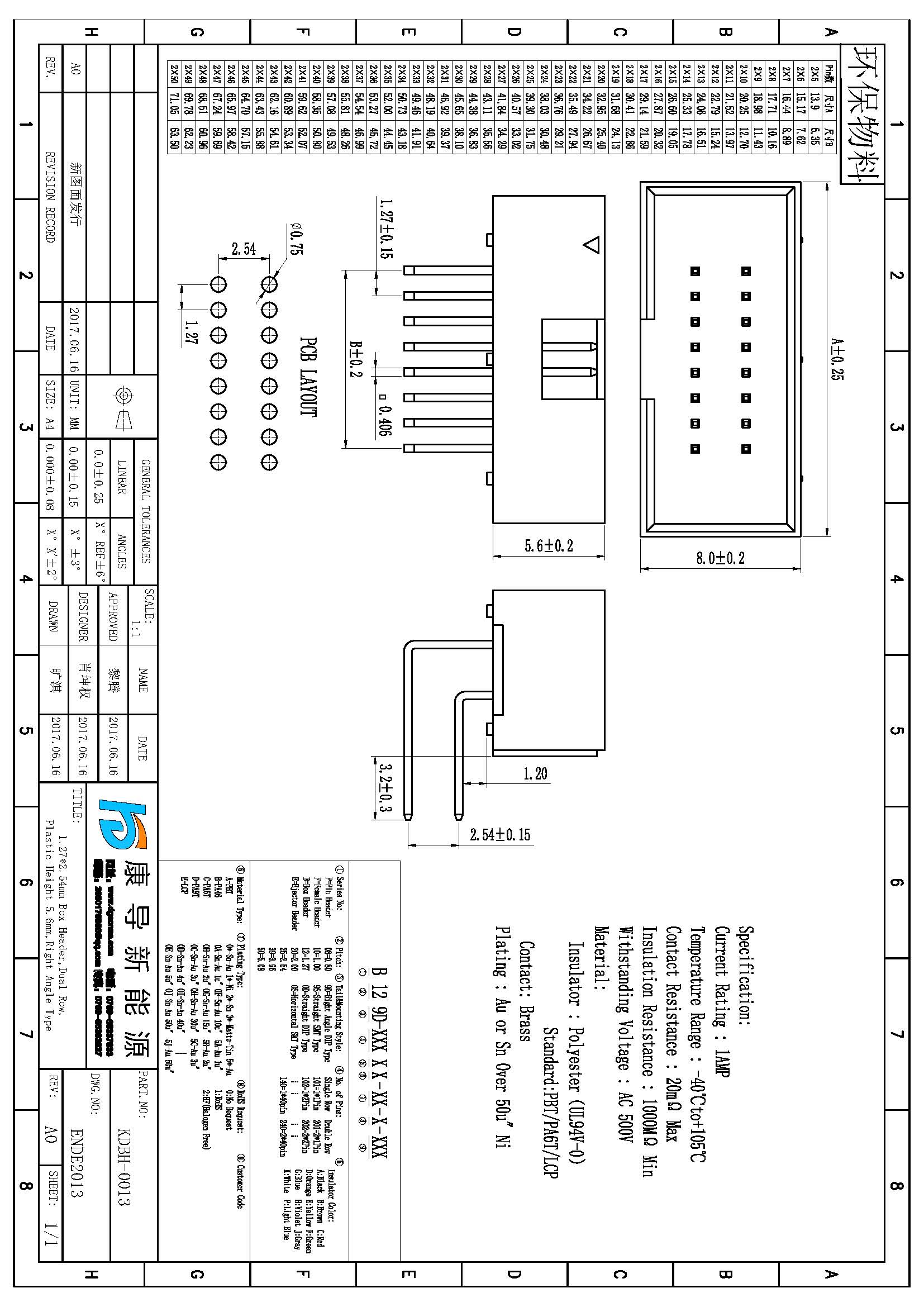

/js/htmledit/kindeditor/attached/20240904/20240904111137_48322.jpg

Pitch:1.27MM*2.54MM
Type:  Right Angle
Row: Dual
Pins:2*5~2*50
Plastics Height:5.6MM
Rated Voltage:250V AC DC
Rated Current:1A AC DC
Withstand Voltage:500V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+105℃
