Product Code:
42006TOP-SOrder(MOQ):
3000Product Specifications:
0.079 amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240821/20240821095253_43189.jpg

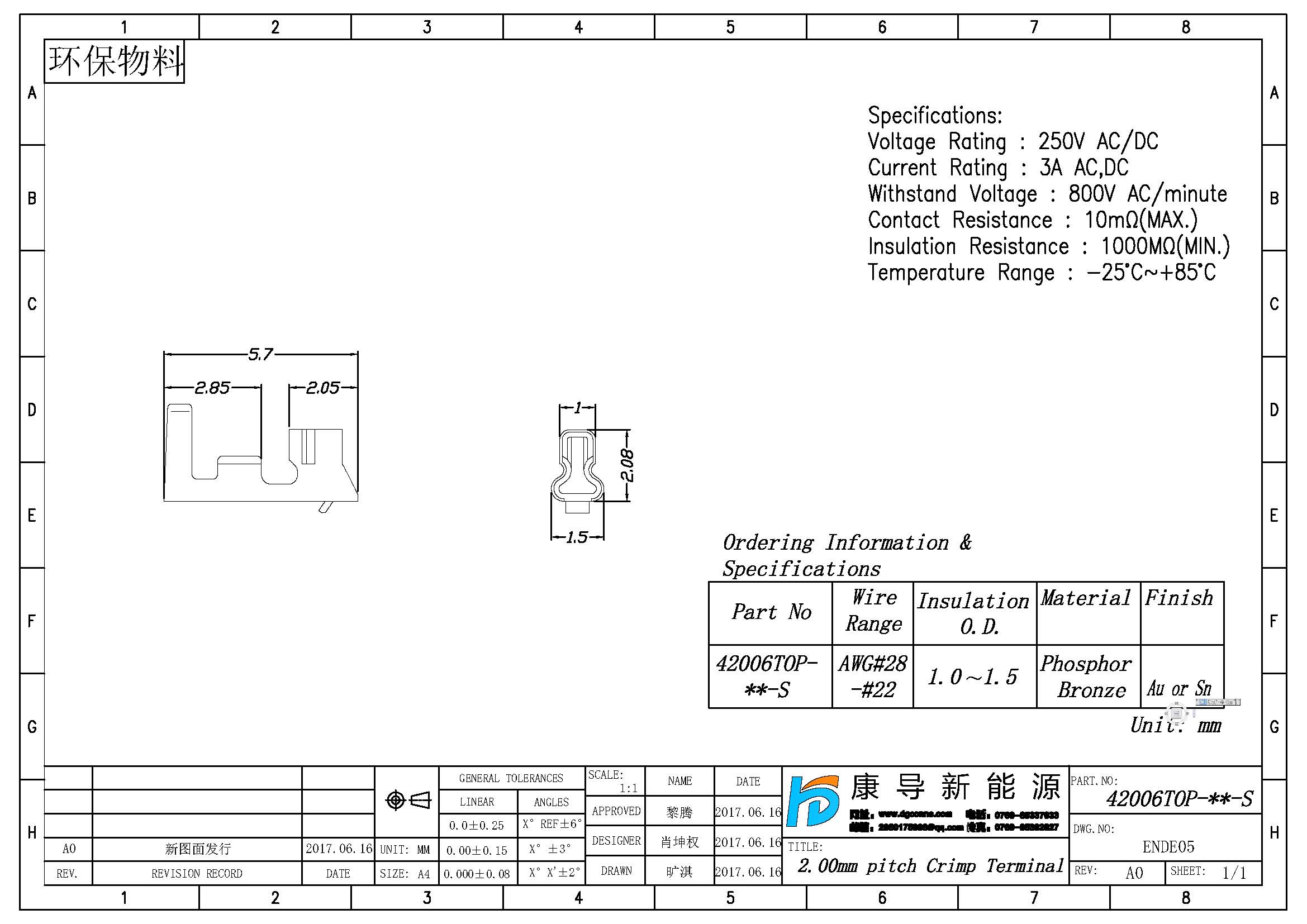

Spec:2.0mm PITCH TERMINAL
Wrie Range:AWG#22~#28
Insulation O.D.:1.00~1.5
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:800V AC/minute
Temperature Range:-25℃~+85℃
