Product Code:
42003TOPOrder(MOQ):
3000Product Specifications:
0.079 amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240821/20240821150305_62756.jpg

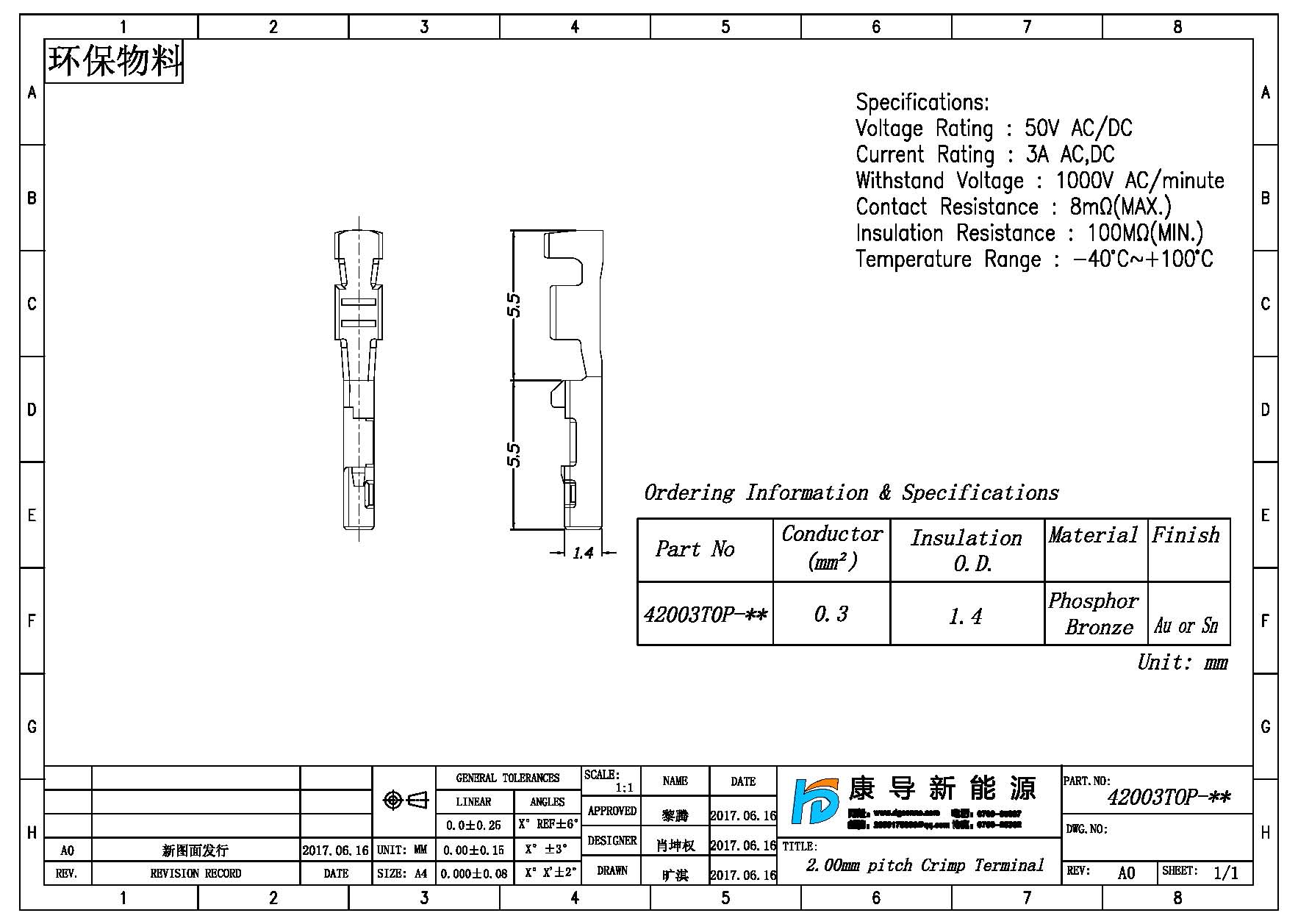

Spec:2.0mm PITCH TERMINAL
Insulation O.D.:1.4mm Max
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:8mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+100℃
