Product Code:
32001TOPOrder(MOQ):
3000Product Specifications:
0.079 Double wire end rubber shellProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

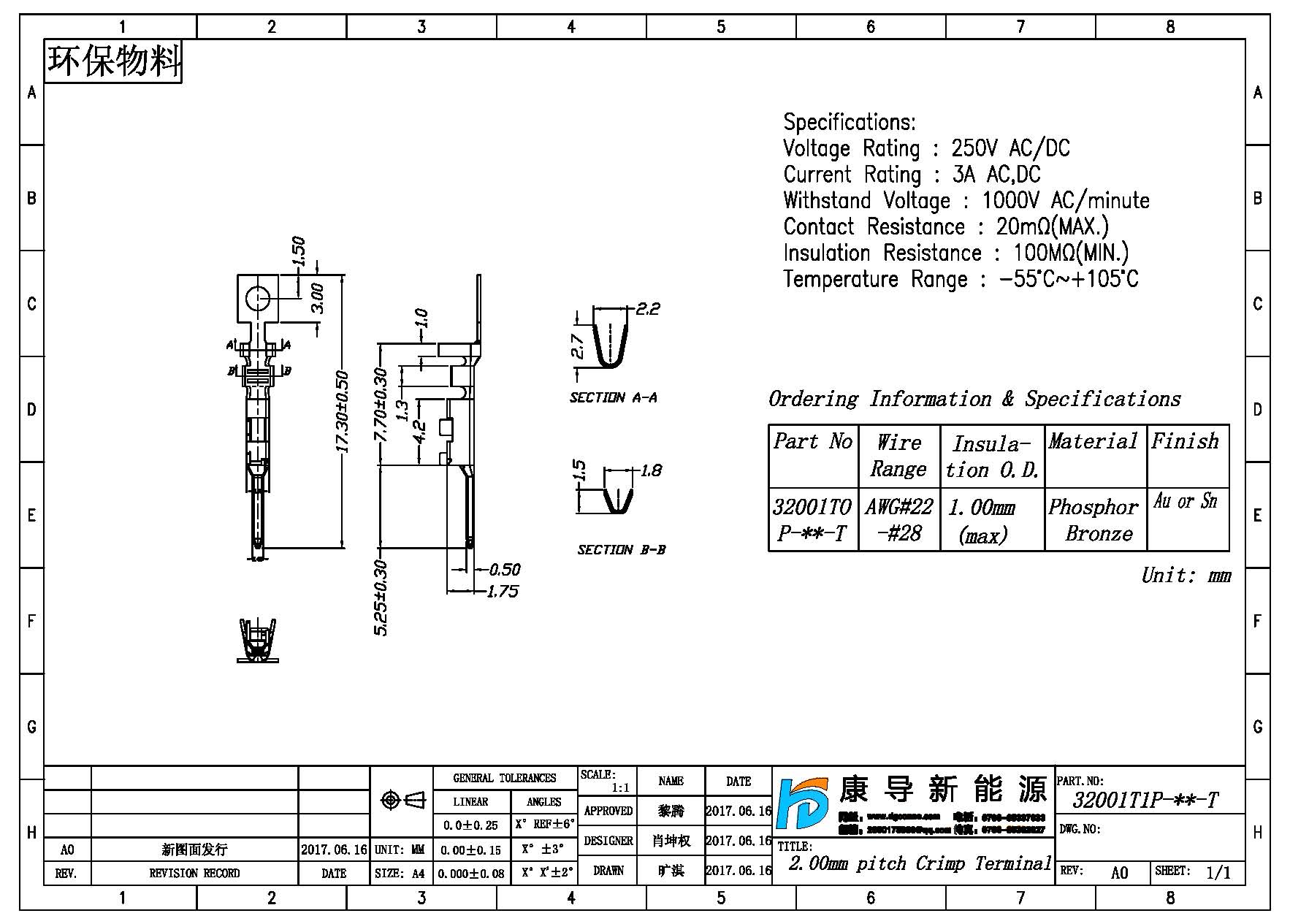

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240822/20240822134501_74249.jpg
Spec:2.0mm PITCH TERMINAL
Wrie Range:AWG#22~#28
Insulation O.D.:1.00mm Max
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
