2.00MM(.079")
32005

32005TOP

  • Product Code:

    32005TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.079 amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240821/20240821104701_85135.jpg

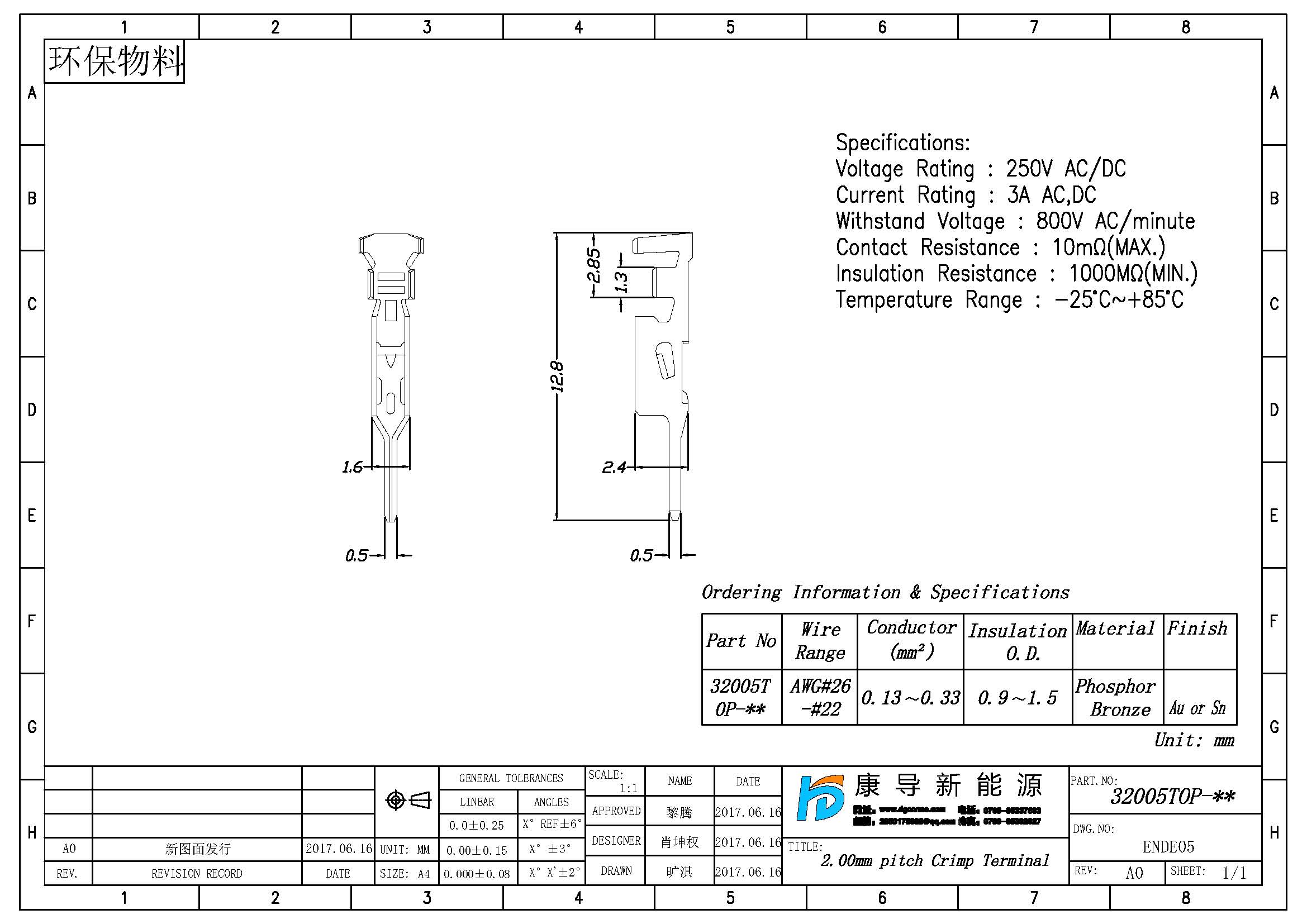

Spec:2.0mm PITCH CRIMP TERMINAL
Wrie Range:AWG#22~#26
Insulation O.D.:0.9~1.5
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:10mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
