Product Code:
21504TOrder(MOQ):
3000Product Specifications:
0.059"Female terminalProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240912/20240912141456_82794.jpg

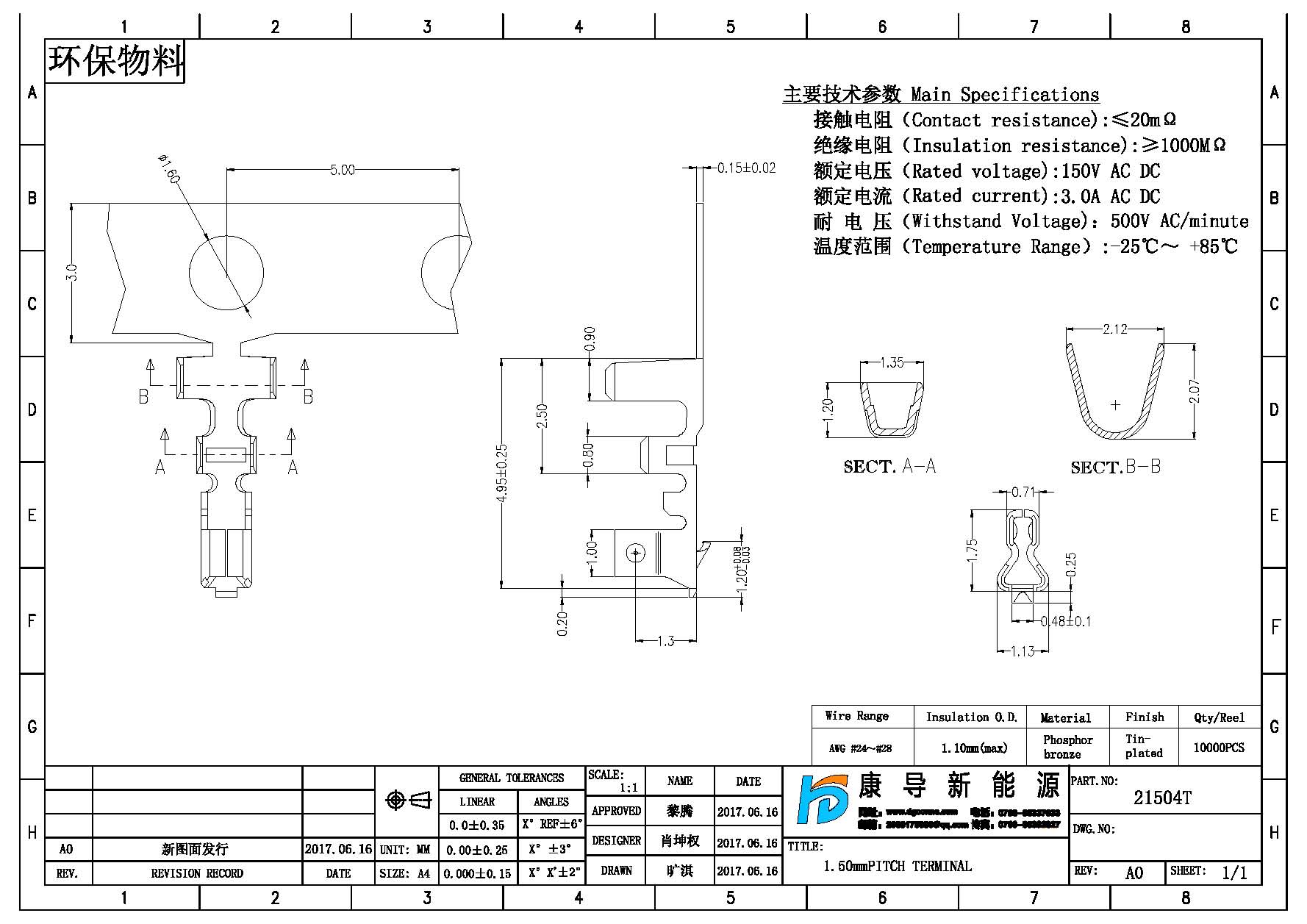

Spec:1.50mm PITCH TERMINAL
Wrie Range:AWG #24~#28
Insulation O.D.:1.10mm MAX
Material:Phosphor bronze
Plating:Sn
Rated Current:3.0A AC DC
Rated Voltage:150V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-25℃~+85℃
