1.25MM(.049")
21257

21256T

  • Product Code:

    21256T
  • Order(MOQ):

    3000
  • Product Specifications:

    0.049"Female terminal
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240918/20240918082256_16117.jpg

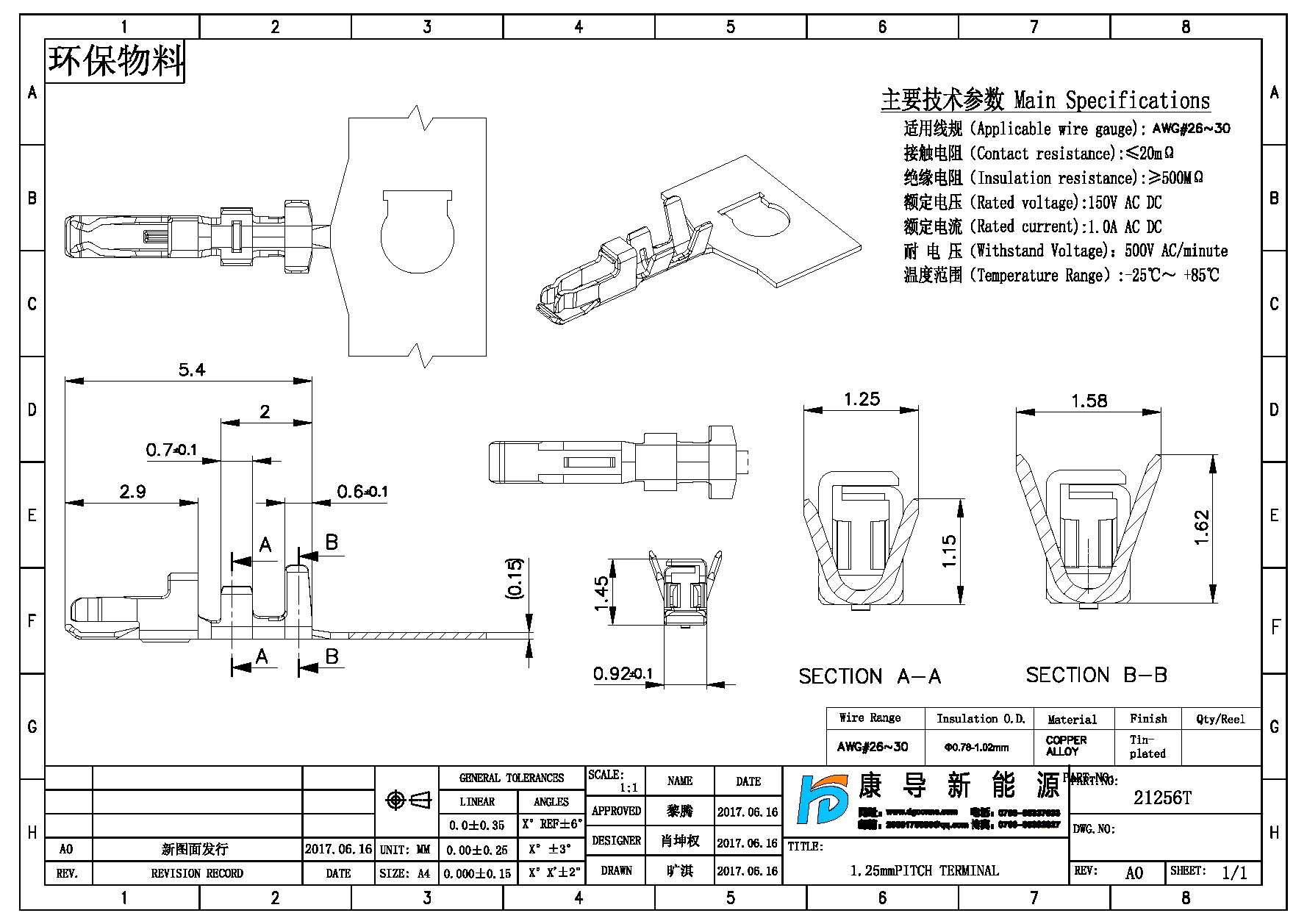

Spec:1.25mm PITCH TERMINAL
Wrie Range:AWG #26~#30
Insulation O.D.:0.78-1.02mm
Material:Phosphor bronze
Plating:Sn
Rated Current:1.0A AC DC
Rated Voltage:150V AC DC
Contact resistance:20mΩ Max
Insulation resistance:500MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-25℃~+85℃
